Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Size
Size Split: 27.5: XS (13.5"), S (15") // 29: M (17"), L (19"), XL (21"), XXL (23"); Trapeze: 27.5: S (15") // 29: M (17"), L (19")
Fork
SR Suntour XCM ATB Coil, 100mm
Headset
27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 720mm
Grips
CUBE Performance Grip
Rear Derailleur
Shimano RD-M3100-SGS, 9-Speed
Shifters
Shimano SL-M3100-R, Rapidfire-Plus
Brake System
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Crankset

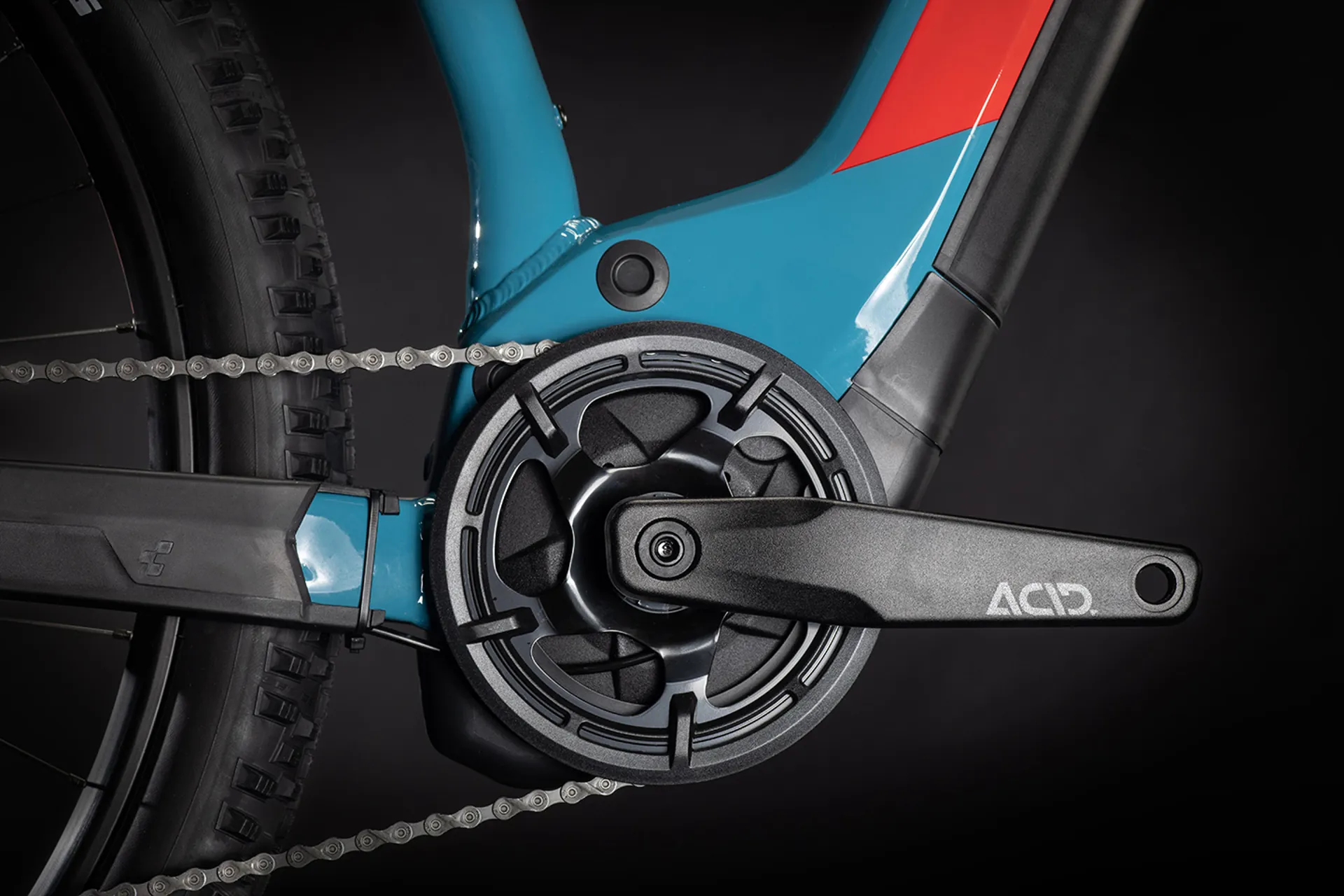

ACID E-Crank, 38T, 175mm
Chain
KMC X9
Colour
iridium´n´green
Cassette
Shimano CS-HG201, 11-36T
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tyres
Schwalbe Smart Sam, K-Guard, 2.35
Pedals
CUBE PP MTB
Saddle
Natural Fit Sequence
Seat Post
CUBE Performance Post, 30.9mm
Seatclamp
CUBE Varioclose, 34.9mm
Battery
Bosch PowerTube 625
Drive Unit
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Display
Bosch Purion
Charger
Bosch 2A
Structural Weight
135 kg
Weight
23,7 kg
