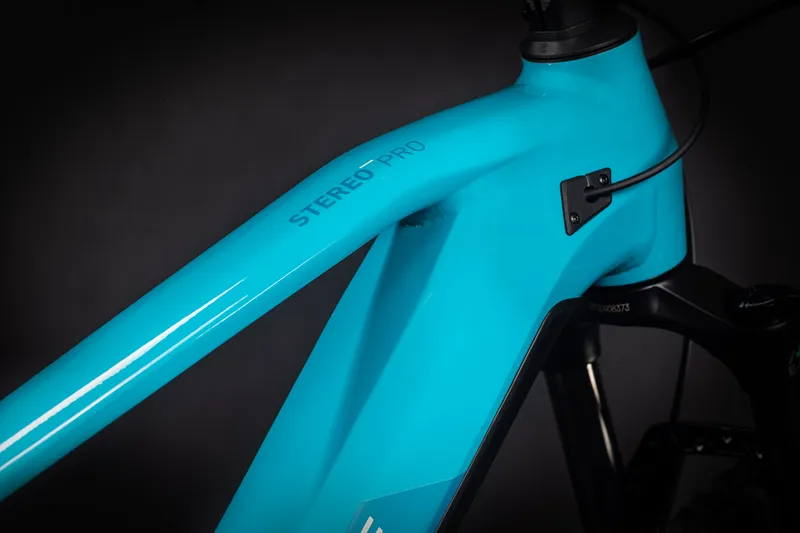

Frame
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Size
Size Split: 27.5: XS (15") // 29: S (16"), M (18"), L (20"), XL (22")
Fork
RockShox Recon Air RL, Tapered, 15x110mm, eMTB Approved, 120mm
Headset
27.5: ACROS AZX-1032, BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZX-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
Natural Fit All Terrain
Rear Derailleur
Sram SX Eagle™, 12-Speed
Shifters
Sram SX Eagle™ Trigger, Single Click
Brake System
Shimano BR-MT420/MT400, Hydr. Disc Brake (203/180)
Crankset
ACID E-Crank, 38T, 170mm
Chain
Sram SX Eagle™
Colour
black´n´red

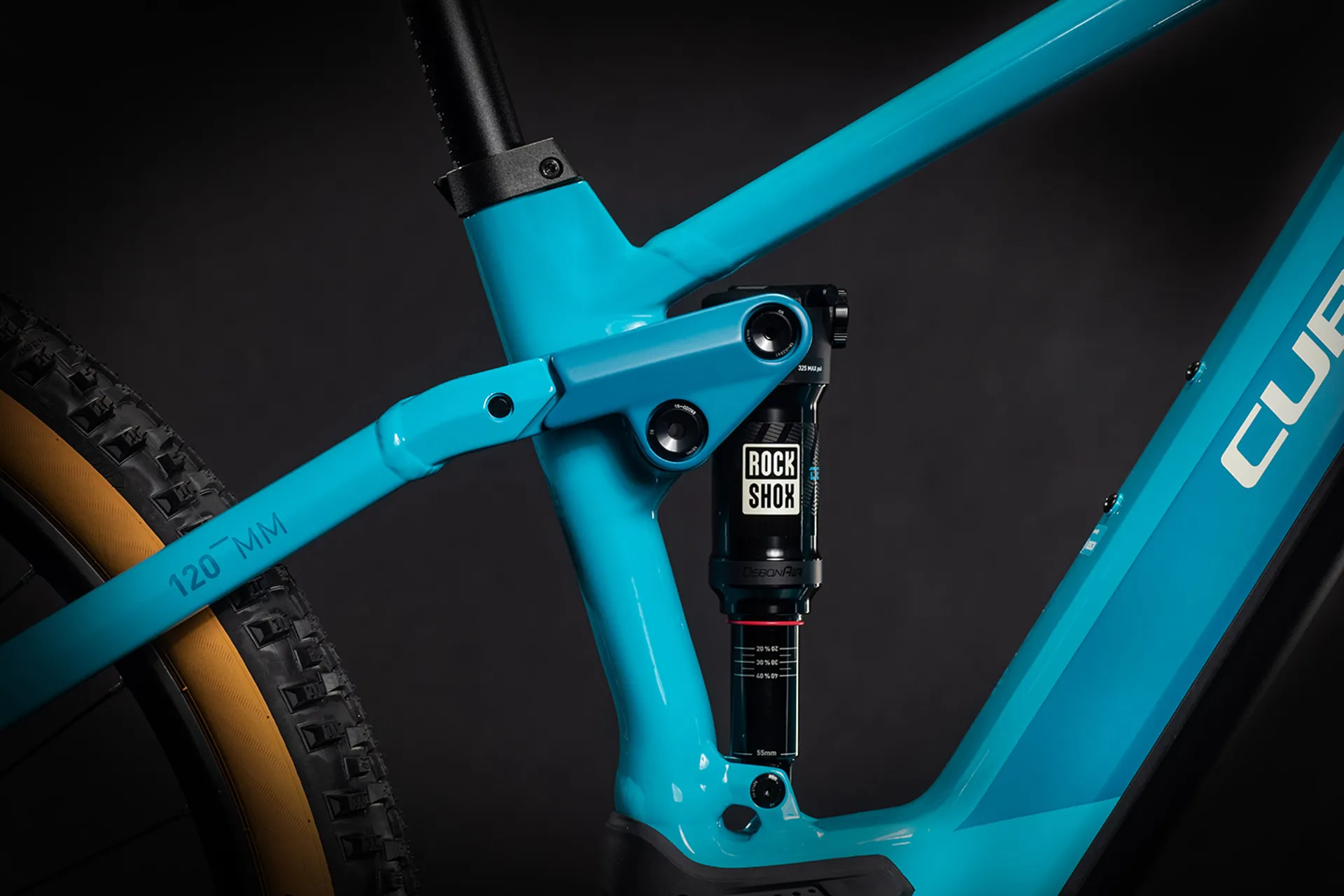

Shock
RockShox Deluxe Select, 185x55mm, Rebound Adjust, Trunnion Mount
Cassette
Sram PG-1210 Eagle™, 11-50T
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tyres
Schwalbe Smart Sam, Active, 2.60
Pedals
CUBE PP MTB
Saddle
Natural Fit Sequence
Seat Post
CUBE Performance Post, 30.9mm
Seatclamp
CUBE Varioclose Semi Integrated, 34.9mm
Battery
Bosch PowerTube 625
Drive Unit
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Display
Bosch Purion
Shock Hardware
Top: 54mm Trunnion Mount, Bottom: 30x8mm
Charger
Bosch 2A
Structural Weight
135 kg
Weight
25,3 kg
