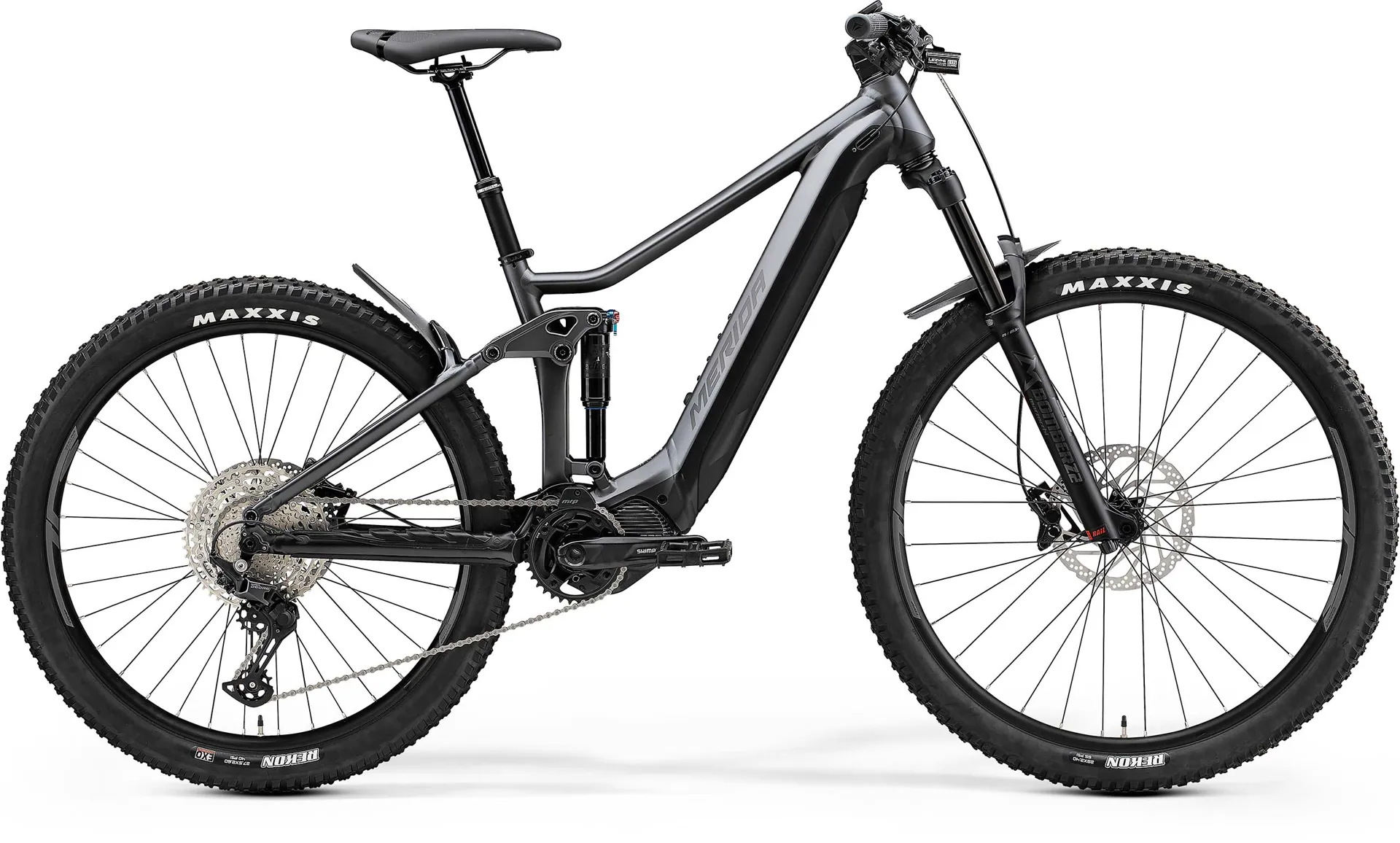

2021 Merida eOne-Forty 500 Electric Mountain Bike in Grey

Season:2021

Brand:Merida

Code:P-M840

The eOne-Forty and eOne-Sixty share exactly the same frame and design features but have different ride characteristics.

The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach and delivers a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful, a highly competent climber and perfect for all day riding.

All eOne-Forty models use the powerful new Shimano EP8 85NM motor and bigger 630NM battery (with the exception of S frame sizes). The eOne-Forty 500 has a Marzocchi Z2 fork and SR Suntour rear shock with Shimano Deore 11 speed transmission.
  • €4,963.54
    EUR
  • $7,189.92
    AUD
  • $6,689.53
    CAD
  • $8,379.71
    NZD
  • $4,818.54
    USD
  • CHF3,858.18
    CHF
  • kr53,238.62
    SEK
  • kr606,414.26
    ISK
  • kr37,089.78
    DKK
  • kr48,556.49
    NOK
  • ¥766,885.17
    JPY
  • Technical Information
    • Frame
      Lite III - Hydroformed 6066 series triple butted aluminium with intergrated battery. Internal cable routing, Smart entry for rattle free running. Aggressive trail geometry delivers 133mm of rear wheel travel
    • Rear Shock
      Suntour RS-Edge-TR-LO-R8-M6; lockout
    • Fork
      Marzocchi Z2 eMTB+; Air; 140mm travel; Tapered; 51mm fork offset
    • Headset
      Merida-8152
    • Stem
      Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length : 50 mm all sizes
    • Handlebar
      Merida Expert eTR; 780mm wide; 20mm rise
    • Grip
      Merida Expert EC
    • Brake Type
      Hydraulic disc
    • Brake Calipers
      Front: Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor Rear: Shimano M4100; 4 piston hydraulic disc brake with Shimano RTEM300; 203 mm rotor
    • Tyres
      Front: Maxxis Rekon; 29 x 2.4; wire bead Rear: Maxxis Rekon; 27.5 x 2.6; EXO wire bead
    • Wheel Size
      29 / 27.5
    • Wheels
      Rims: Merida Comp TR; 29mm inner rim width; Material: aluminium Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Centerlock Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key
    • Speeds
      11
    • Rear Derailleur
      Shimano Deore RDM5100 11
    • Shift Levers
      Shimano Deore M5100 11
    • Chain
      Shimano CN-HG601-11 speed
    • Cassette
      Shimano M5100; 11-51 teeth; 11 speed
    • Chainset
      Shimano CRE70-B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank
    • Bottom Bracket
      Part of Shimano Steps motor
    • Pedals
      VP Components, VPE-537
    • Saddle
      Merida Comp CC; V-mount
    • Seat Post
      Merida Comp TR; 30.9mm diameter; in-line; S 100mm drop - M/L 125mm drop - XL/XXL 150mm drop with Shimano SL -MT500-IL lever
    • Motor
      Shimano E8035; 630Wh battery, Shimano EP8; 85Nm motor
    • Battery Capacity
      630 Wh
    • eBike Display
      Shimano SC-E5003
