Rail 9.9 is a long-travel electric mountain bike built for ultimate trail performance
Rail 9.9 is a long-travel electric mountain bike built for ultimate trail performance
Trek

2021 Trek Rail 9.9 XTR Electric Mountain Bike in Purple

€11,795.93
EUR
£10,250.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

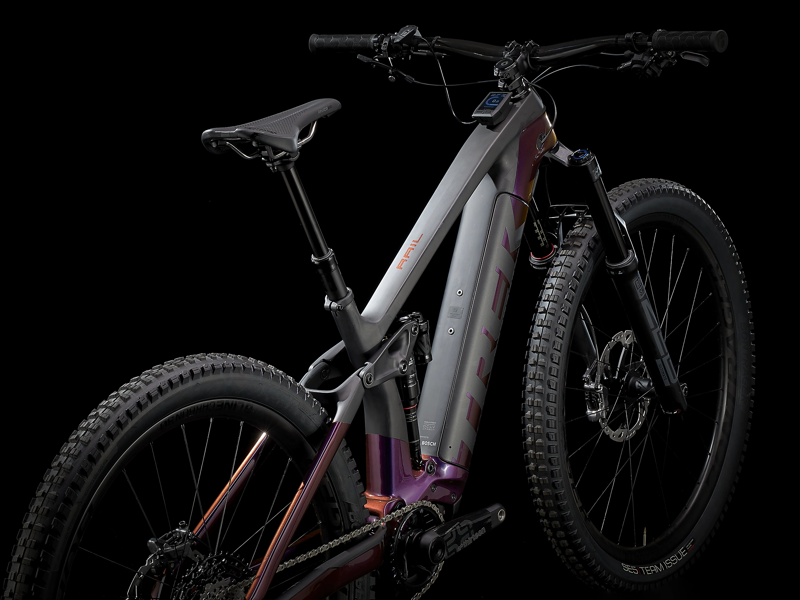

2021 Trek Rail 9.9 XTR Electric Mountain Bike in Purple

Season:2021

Brand:Trek

Code:32983GLSPURPhazeMATRawCBN

Rail 9.9 is a long-travel electric mountain bike built for ultimate trail performance

The light OCLV Mountain Carbon frame features an awesome RockShox suspension setup, a full Shimano XTR drivetrain and the best e-MTB drive system on the market. It'll shred right alongside the enduro crowd, but the best part is that you'll always beat them up the climbs and get in the most runs.

Features:

  • The new, better-than-ever Bosch motor is smaller, lighter and more efficient. It feels more natural while you’re pedalling, and has less drag when you’re not
  • The full-colour Bosch Kiox controller displays ride info, connects with your Bluetooth® enabled devices and has a built-in theft prevention feature
  • RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control

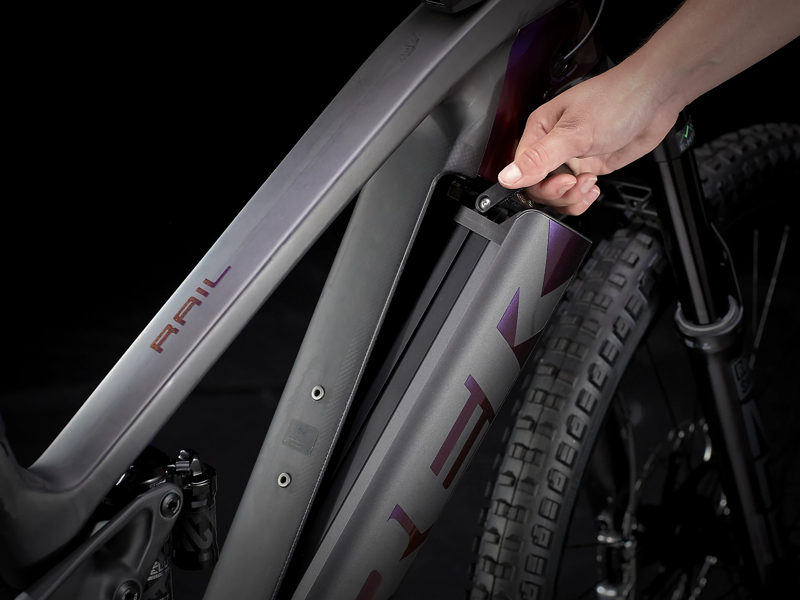

  • Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
  • Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
  • Smaller frames (S) have a top tube that dips down as it approaches the seat tube
  • €11,795.93
    EUR
  • $17,119.55
    AUD
  • $15,930.96
    CAD
  • $19,957.77
    NZD
  • $11,477.80
    USD
  • CHF9,144.94
    CHF
  • kr126,423.62
    SEK
  • kr1,447,008.07
    ISK
  • kr88,141.67
    DKK
  • kr115,546.23
    NOK
  • ¥1,812,058.23
    JPY
    • Technical Information
    • Frame
      OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
    • Fork
      RockShox ZEB Ultimate, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
    • Shock
      NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm
    • Max compatible fork travel
      170mm (580mm axle-to-crown)
    • Wheel front
      NEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
    • Wheel rear
      NEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
    • Skewer rear
      Bontrager Switch thru-axle, removable lever

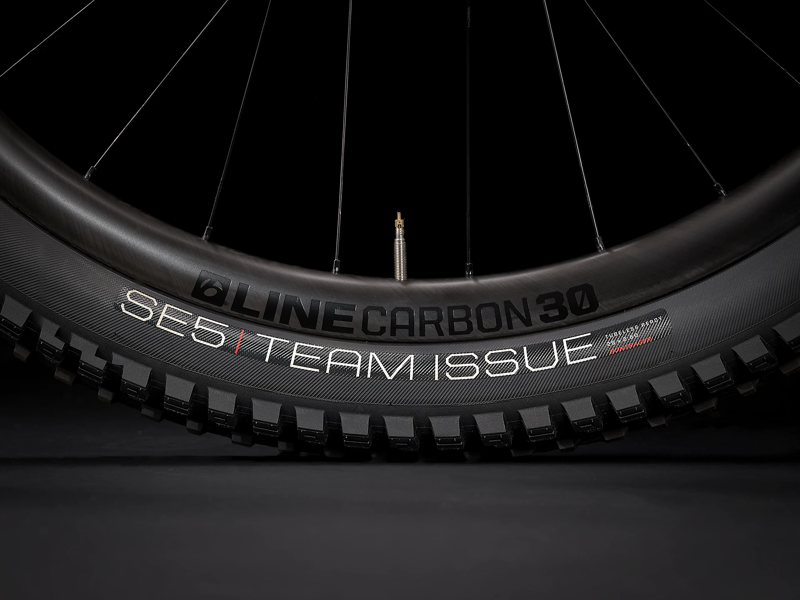

    • Tyre
      Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29x2.60"
    • Tyre part
      Size: S/M/L/XL, Bontrager TLR sealant, 180 ml/6 oz
      Size: S/M/L/XL, Quarq TyreWiz tire pressure monitors
    • Rim strip
      Bontrager TLR
    • Max tyre size
      Frame: 29x2.60" Fork: See manufacturer
    • Shifter
      Shimano XTR M9100, 12-speed

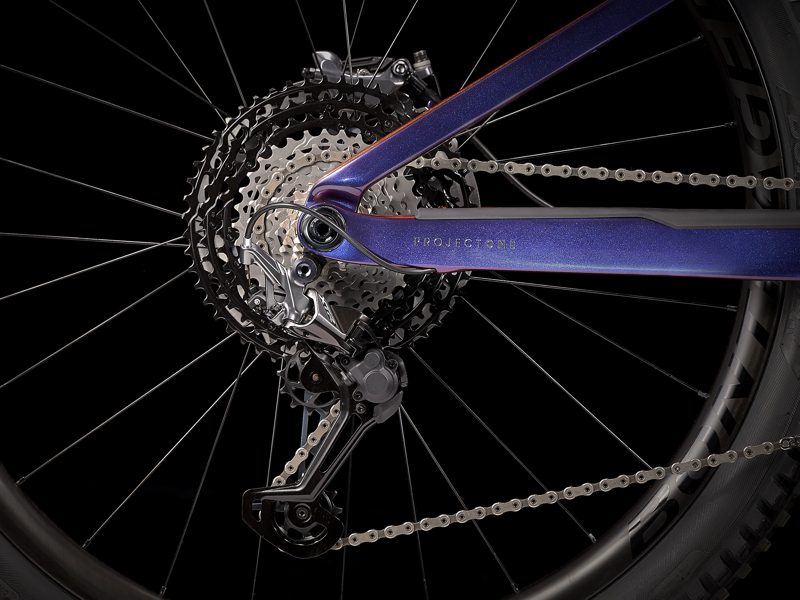

    • Rear derailleur
      Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
    • Crank arm
      E*thirteen E*spec Race carbon, 34T, 165 mm length
    • Cassette
      Shimano XTR M9100, 10-51, 12-speed
    • Chain
      Shimano XTR M9100, 12-speed
    • Pedal
      VP-536 nylon platform
    • Max. chainring size
      34T
    • Saddle
      Bontrager Arvada, austenite rails, 138 mm width
    • Seatpost
      Size: S, Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
      Size: M, Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
      Size: L/XL, Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6 mm, 480mm length
    • Handlebar
      Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
    • Grips
      Bontrager XR Trail Elite, alloy lock-on
    • Stem
      Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 45 mm length
    • Head set
      Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom

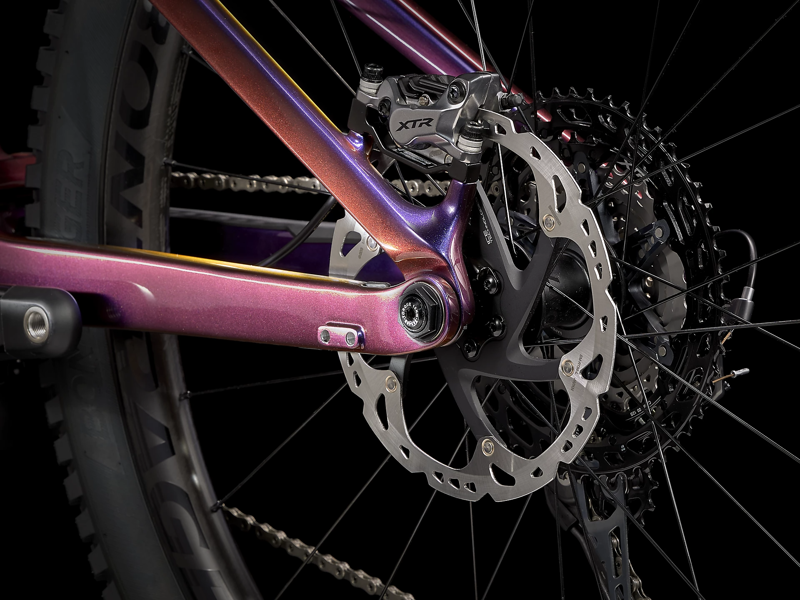

    • Brake
      Shimano XTR M9120 4-piston hydraulic disc
    • Brake rotor
      Shimano RT86, 203 mm, 6-bolt
    • Battery
      Bosch PowerTube 625
    • Charger
      Bosch standard 4A (220-240 V) charger

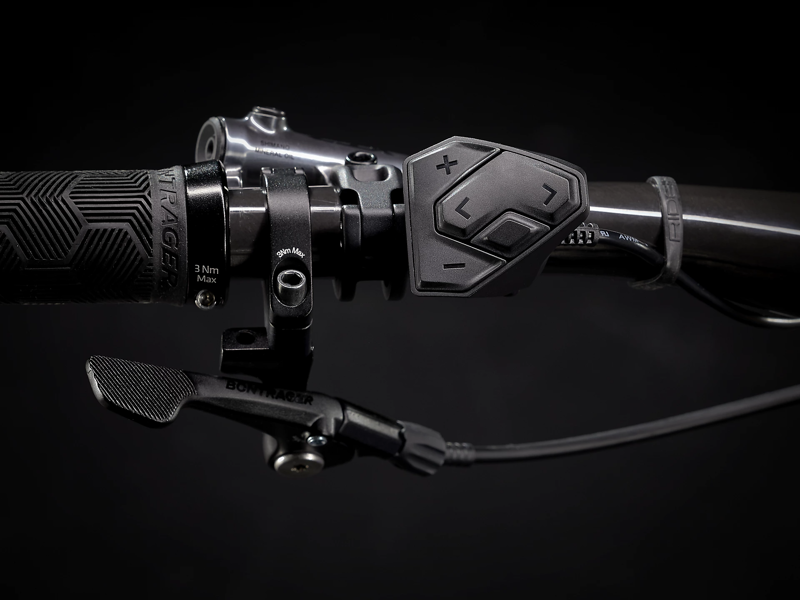

    • Controller
      Bosch Kiox with Anti-theft solution

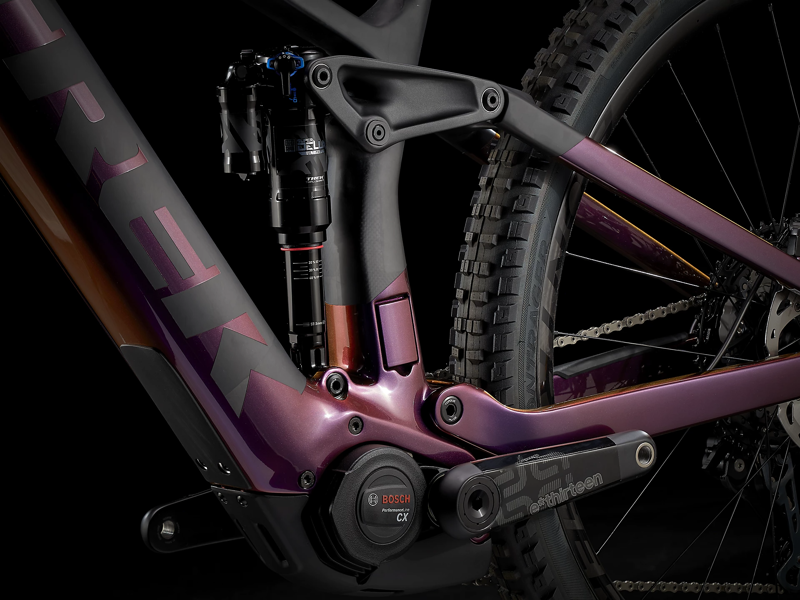

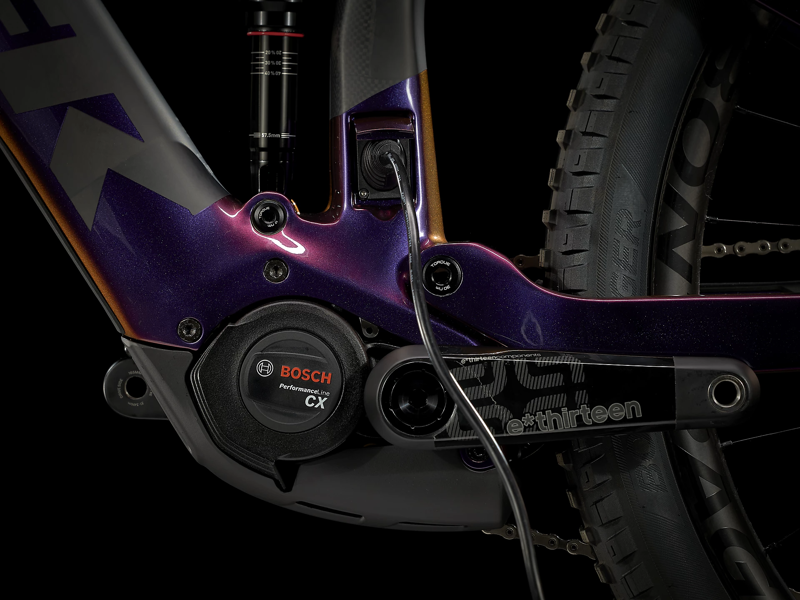

    • Motor
      Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
    • Weight
      M - 21.71 kg / 47.86 lbs (with tubes)
    • Weight limit
      This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
