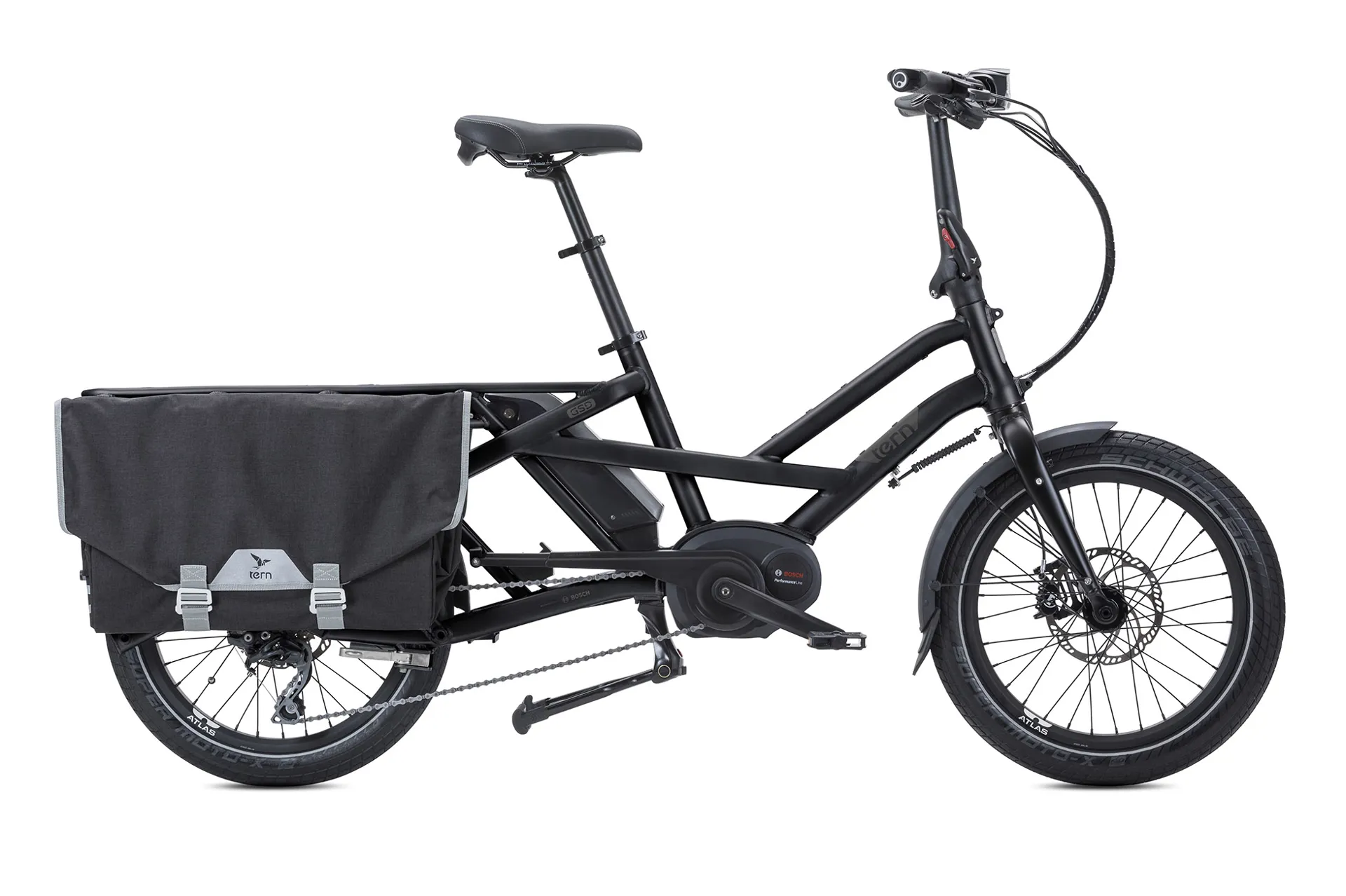

Tern GSD S10 Folding Bike in Black

Brand:Tern

Code:TERN1944

Enormously useful. Surprisingly small.

Introducing from Tern Bikes the GSD S10 Performance Folding Bike! The GSD S10 is a compact cargo bike with electric assistance providing you with a versatile utility vehicle. It's the length of a normal bike giving you a large rear cargo deck for securing luggage, or even allowing you to fit two additional child seats turning it into a family bike/transporter. It really is the MPV of e-bikes, travelling solo you can fit up to six conventional panniers! GSD stands for "Getting Stuff Done".

The GSD S10 can carry up to 180kg and this includes the rider. The bike is able to support this weight with thanks to its triangulated durable tubes and fitted with wider and stronger hubs on the wheels to support the additional load. The bike caters for riders between the height of 150 to 195cm and both the stem and seat post are telescopic. The low-step frame makes it easy to hop on and off the bike.

This model is equipped with a Bosch Performance motor that delivers 63Nm of torque and assisting you up to 15mph. Hill starts and climbing hills are made ease to effortlessly cruising you along on the flats. Providing the motor with its power is with thanks to the provide 400Wh battery that delivers a range between 50-110km (31-68 miles), and of course depends on the rider, luggage and weather and terrain factors. The Tern GSD S10 does feature dual-battery which you can slot in a (optional) 500Wh battery to extend the bike's range up to 250km (155-miles). Power delivery is smooth and with the bike's low centre of gravity leaves the GSD S10 feeling very stable. Tern has also given this e-bike a 10-speed drivetrain and this allows you vary your tempo when cycling on changing road surfaces and inclines.

The upright riding position gives you good visibility of your surroundings making it an easy bike to ride towns and cities, comfortable grips and saddle makes long-haul journeys very pleasant. The hydraulic disc brakes provide fluid braking performance are safer and more controlled when applied, compared non-regulated/standard brakes on most mundane bikes.

For anyone thinking about leaving the car at home, then GSD S10 with its vast ability to carry and add-on range with thanks to its dual-battery functionality isn't a bike to be ignored.

Features:

  • Bosch® Performance Line motor
  • Bosch dual-battery system (400/500/900 Wh) for a range of up to 250 km
  • Magura® MT5 4-piston hydraulic disc brakes
  • Custom 62 mm Schwalbe® Super Moto-X tires with puncture protection
  • Heavy-duty frame-integrated rack
  • Boost thru-axle hubs
  • Wide range of accessories, including the Cargo Hold Panniers
  • Andros stem for handlebar height and reach adjustments
  • Fits two Thule Yepp Maxi child seats, or one Thule Yepp Nexxt Maxi seat—no adapters needed
  • €4,851.28
    EUR
  • $7,029.83
    AUD
  • $6,542.24
    CAD
  • $8,166.84
    NZD
  • $4,714.03
    USD
  • CHF3,760.33
    CHF
  • kr51,935.82
    SEK
  • kr593,505.01
    ISK
  • kr36,250.56
    DKK
  • kr47,527.33
    NOK
  • ¥748,603.78
    JPY
  • Technical Information
    • Colour:
      Beetle Blue
      Black
      Mango
      Orange
      Silver-Blue
    • Wheel Size:
      20" wheels
    • Speeds:
      1 x 10
    • Weight:
      27.06 kg (59.66 lb) w/ 1 battery
    • Folding Size:
      173 x 40 x 83 cm (71" x 15.7" x 33”)
    • Folding Time:
      5 sec
    • Frame Sizes:
      181 cm (Total Length)
    • Gear Inches:
      29" - 95" (2.31 - 7.57 m)
    • Distance: Seatpost To Handlebar:
      Min: 490 mm (19.3") Max: 560 mm (22")
    • Distance: Saddle To Pedal:
      Min: 690 mm (27.2") Max: 1120 mm (44.1")
    • Suggested Rider Height:
      150 - 195 cm (4'11" - 6'5")
    • Max Gross Vehicle Weight:
      200 kg (440 lbs)
    • Max Rider Weight:
      120 kg. (264 lbs.)
    • Frame:
      Tern GSD, 7005-Al, patented MultiTruss design
    • Fork:
      Tern GSD, 1.5" Taper, Boost Thru-axle, 110 mm, 7005-AL
    • Handlepost:
      Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
    • Stem:
      Tern Andros (G2), adjustable, forged construction, patented technology
    • Headset:
      Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
    • Handlebar:
      Tern Sweep, 27 degrees, 6061-AL, Tern Andros adapted
    • Grips/Bar Tape:
      Ergon GC10, for swept bar
    • Saddle:
      Tern GSD, with rear handle
    • Seatpost:
      Tern Telescope, 34.9 mm, 2014-AL
    • Front Brake:
      Magura MT5, 4-piston hydraulic disc, 180 mm rotor
    • Rear Brake:
      Magura MT5, 4-piston hydraulic disc, 180 mm rotor
    • Brake Levers:
      Magura, hydraulic
    • Front Hub:
      Tern Atlas, Boost thru-axle
    • Rear Hub:
      Tern Atlas, Boost thru-axle, Syntace X-12 standard, ebike reinforced design
    • Spokes And Nipples:
      Stainless steel, 13G
    • Rims:
      Tern Atlas, ultra wide 36 mm, dual reinforced joint
    • Tires:
      Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
    • Shifter(s):
      Shimano Deore, 1 x 10 spd
    • Rear Derailleur:
      Shimano Deore Shadow+
    • Crankset:
      Tern GSD custom, forged 6061-AL DH crankarm
    • Cassette/Freewheel:
      Shimano 11-36T, 10 spd
    • Bottom Bracket:
      Motor integrated
    • Chain:
      10 spd, DHT for eBike, GST corrosion resistant coating
    • Pedals:
      Urban with non-slip surface, sealed bearings
    • Shifter Cable & Housing:
      Jagwire LEX-SL, slick treatment, alloy ferrules
    • Motor:
      Bosch Performance, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 63 Nm
    • Battery:
      Bosch Dual Battery system, 400wh/500wh/900wh
    • Display:
      Bosch Purion, 4 mode selectable, walk assist
    • Range:
      400 Wh: 50-110 km (31-68 mi), 500 Wh: 60-140 km (37-87 mi), 900 Wh: 110-250 km (68-155 mi)
    • Charger:
      Bosch Standard Charger
    • Bell:
      Aluminum
    • Chainguard:
      SKS Chainblade
    • Kickstand:
      Heavy-duty double stand, 80 kg capacity
    • Luggage Socket:
      Combo Mount
    • Front Light:
      Tern Valo Direct, integrated, 41 lux/150 lumens
    • Rear Light:
      Herrmans H-Trace, for eBike
    • Fenders:
      SplashGuard, stainless hardware
    • Rack(s):
      Frame integrated, heavy duty design
