Model Number
C25601M
Model Name

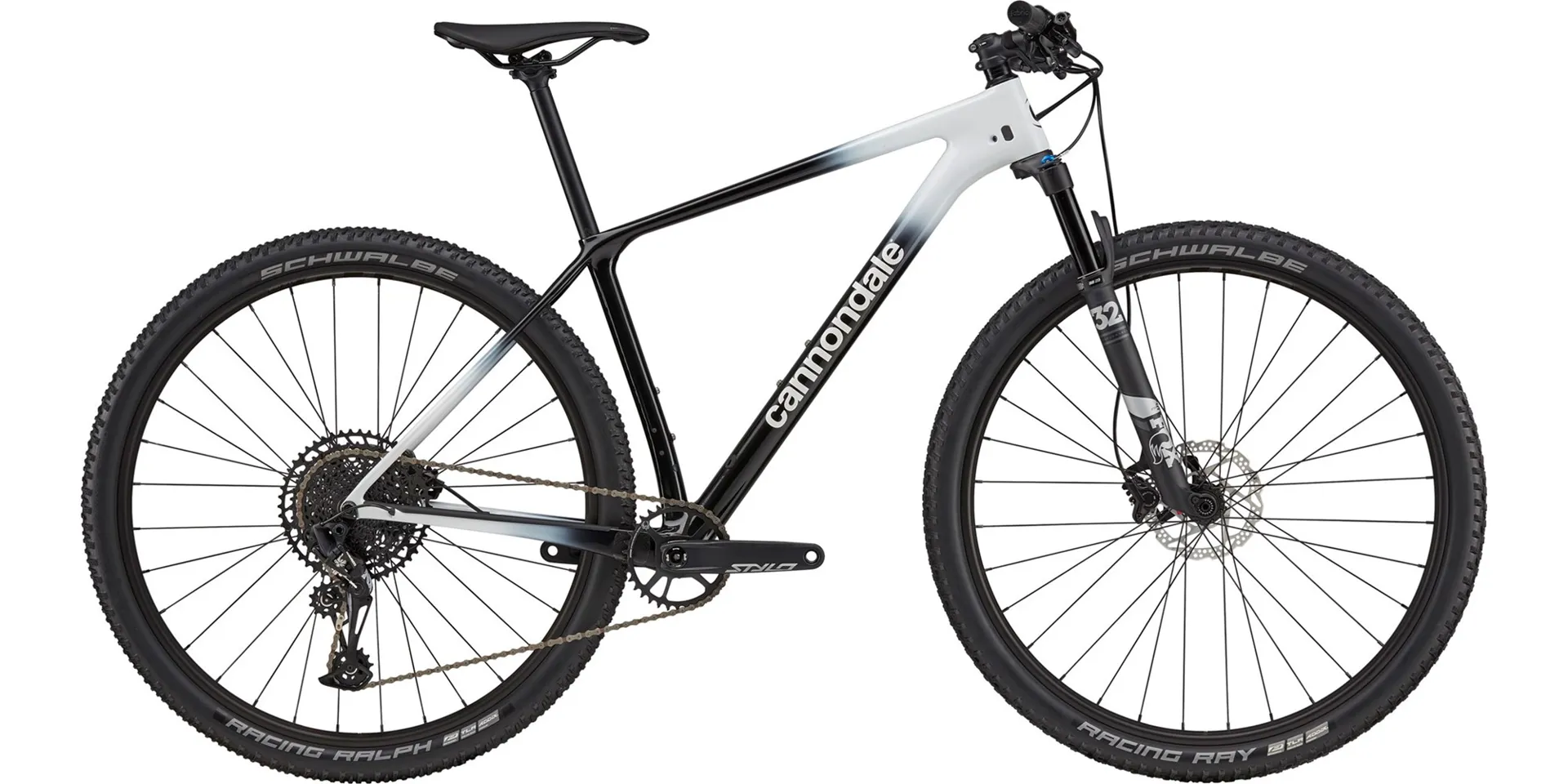

F-Si Carbon 5
Frame
BallisTec Carbon, SAVE, PF30-83, tapered head tube, Speed Release 12mm thru axle, Ai Offset
Fork
Fox Float Factory 32 SC, 100mm, 15x110mm thru-axle, remote lockout, tapered steerer, 51mm offset
Rims
WTB STX i23 TCS, 32h, tubeless ready
Hubs
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT400 12x148mm thru-axle
Spokes
DT Swiss Champion
Tires
(F) Schwalbe Racing Ray Performance, 29 x 2.25", Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29 x 2.25", Addix Compound, tubeless ready
Crank
Truvativ Stylo 6K DUB, 34T, Ai offset
Bottom Bracket
SRAM DUB PF30 MTB83
Chain
SRAM SX Eagle, 12-speed
Rear Cogs
SRAM SX Eagle, 11-50, 12-speed
Rear Derailleur
SRAM NX Eagle
Shifters
SRAM NX Eagle, 12-speed
Handlebar
Cannondale 3 Flat, 6061 double-butted Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Grips
Fabric FunGuy
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Headset
Integrated, 1-1/8 to 1.5", sealed angular contact bearings (Integrated steer stop size small and extra small only)
Brakes
Shimano MT500 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano MT500 hydraulic disc
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2 x 400mm
Speeds
12
