Frame
Size: XS/S/M/ML/L/XL/XXL, Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Size: XS/S, Alpha Silver Aluminum, low standover, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
Fork
Size: XS, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S, SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M/ML/L/XL/XXL, SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel
100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Hub front
Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear
Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Spokes
14g stainless steel

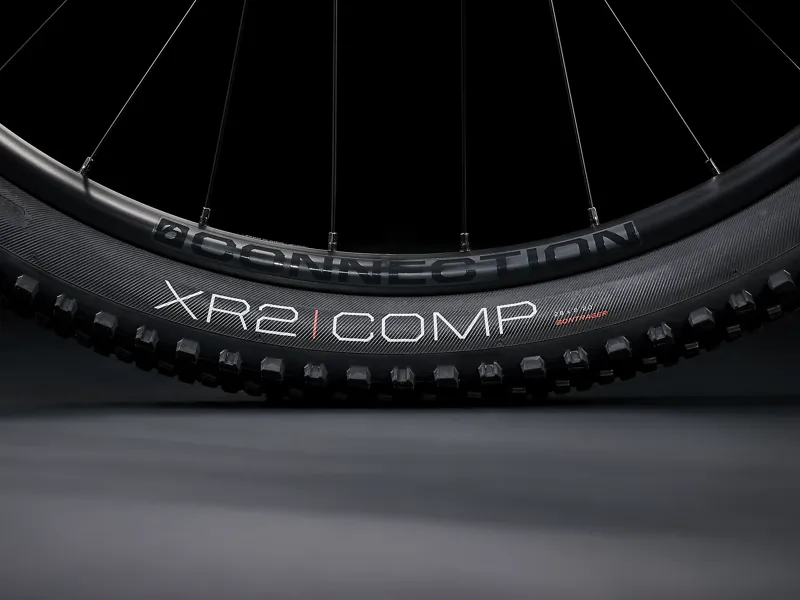

Tire
Size: XS/S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Size: M/ML/L/XL/XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00''
Max tire size
Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
Shifter
Shimano Altus EF500, 7 speed
Front derailleur
Shimano Tourney TY300, 34.9mm clamp, down swing, down pull

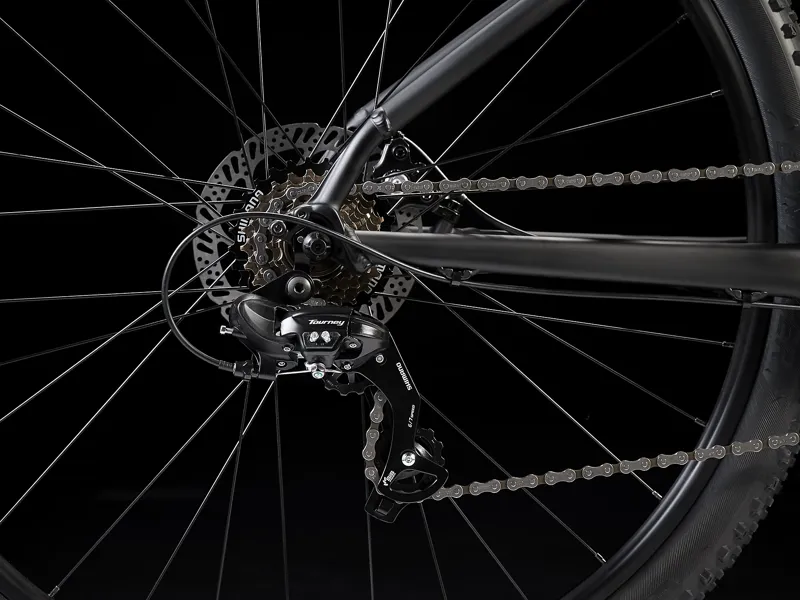

Rear derailleur
Shimano Tourney TY300, long cage, 34T max cog
Crank
Size: XS/S/M, Shimano Tourney TY301, 42/34/24, 170mm length
Size: ML/L/XL/XXL, Shimano Tourney TY301, 42/34/24, 175mm length
Bottom bracket
VP BC73, 73mm, threaded cartridge
Cassette
Shimano TZ500, 14-28, 7 speed
Chain
KMC Z7, 7 speed
Pedal
VP-536 nylon platform
Max chainring size
1x/2x: 34T, 3x: 42T

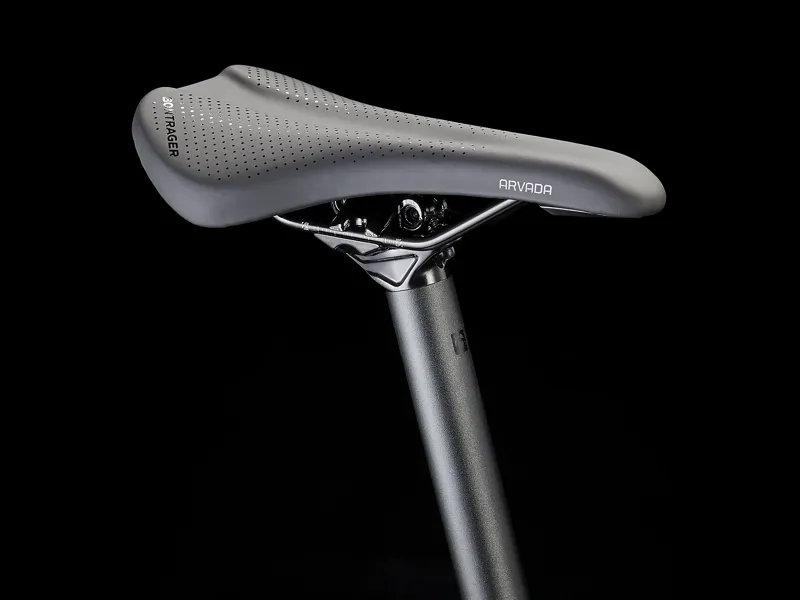

Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: XS/S, Bontrager alloy, 31.6mm, 12mm offset, 330mm lengthSize: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: ML/L/XL/XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Handlebar
Size: XS/S, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: M/ML/L/XL/XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Endurance Comp, lock-on
Stem
Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL/XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset
Semi-integrated, 1-1/8''

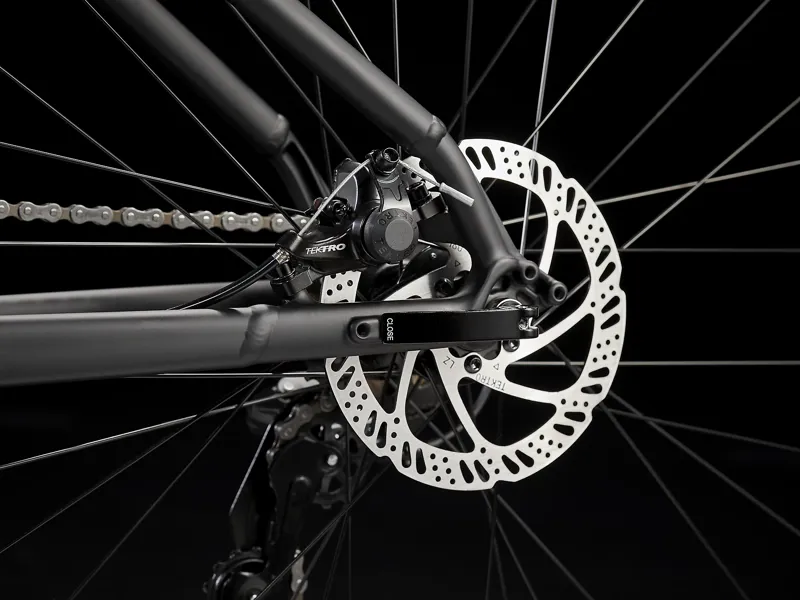

Brake
Size: XS/S/M/ML/L/XL/XXL, Tektro MD-M280 mechanical disc, 160mm rotor
Size: XS/S/M/ML/L/XL/XXL, Tektro MD-M281 mechanical disc
Weight
M - 30.82 lbs / 13.9815 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
