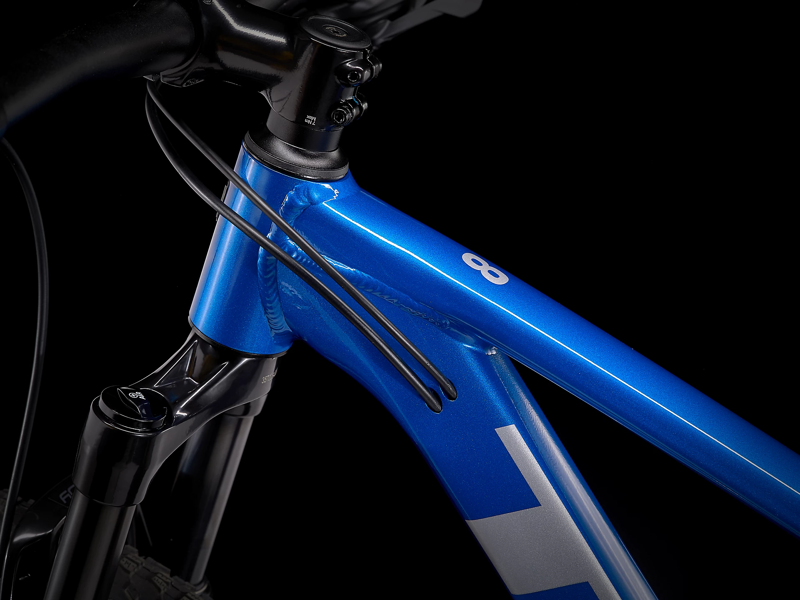

Frame

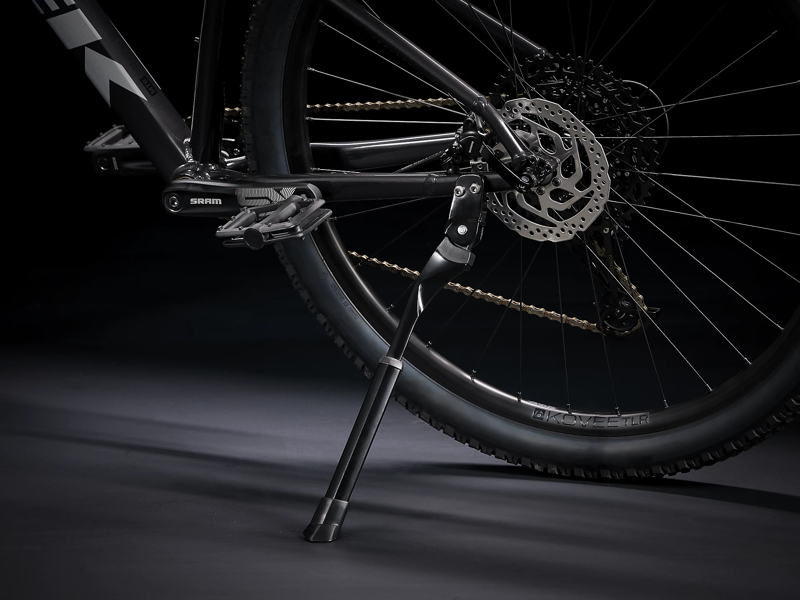

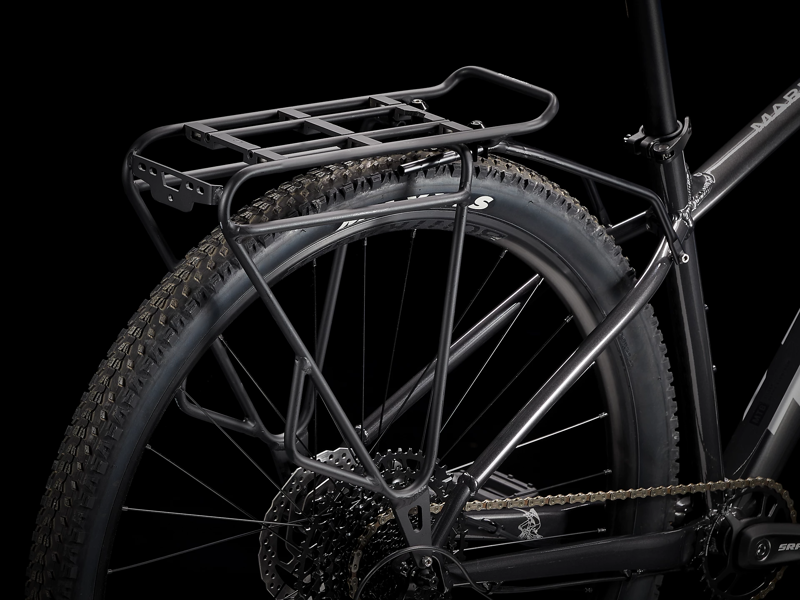

Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR

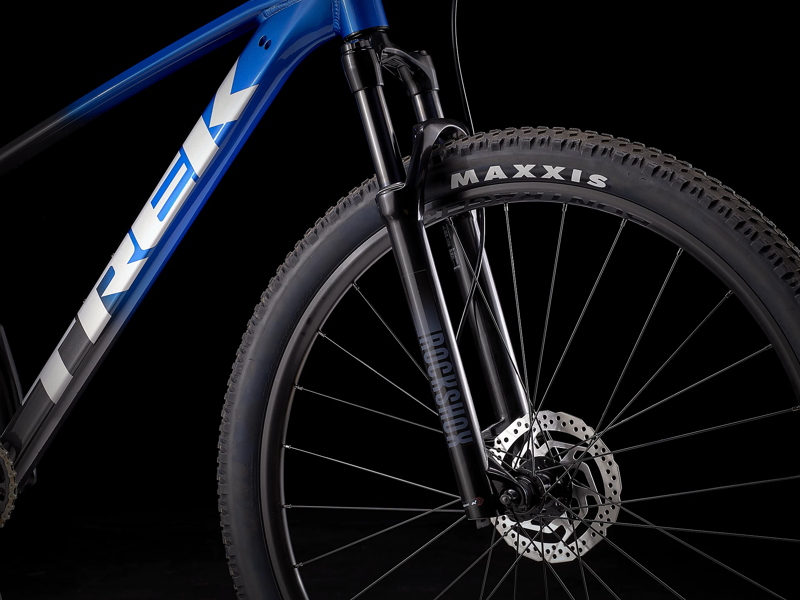

Fork
Size: XXS/XS, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 80mm travel
Size: S/M/ML/L/XL, RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 100mm travel
Max compatible fork travel
100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)
Hub front
Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR
Hub rear
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim
Size: XXS/XS/S/M/ML/L/XL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve
Size: M/ML/L/XL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
Spokes
14g stainless steel
Tire
Size: XXS, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 26x2.40''
Size: XS/S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''
Size: M/ML/L/XL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''
Size: M/ML/L/XL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.20''
Max tire size
Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer
Shifter
SRAM SX Eagle, 12 speed
Rear derailleur
SRAM SX Eagle

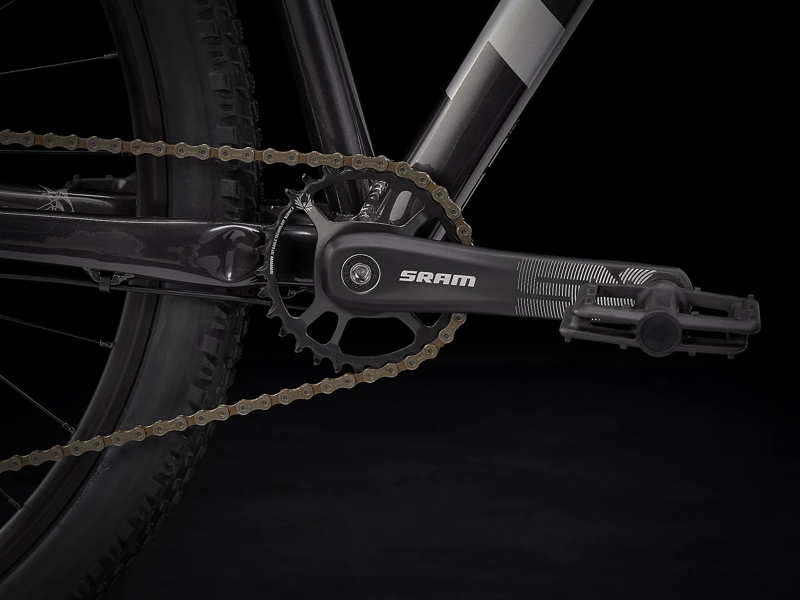

Crank
Size: XXS, SRAM SX Eagle, 30T steel ring (49mm chainline), 155mm length
Size: XS/S/M, SRAM SX Eagle, 30T steel ring (49mm chainline), 170mm length
Size: ML/L/XL, SRAM SX Eagle, 30T steel ring (49mm chainline), 175mm length
Bottom bracket
Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
Cassette
SRAM PG-1210 Eagle, 11-50, 12 speed
Chain
SRAM SX Eagle, 12 speed
Pedal
VP-536 nylon platform
Max chainring size
1x/2x: 34T, 3x: 42T
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: XS/S/M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML/L/XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Handlebar
Size: XXS/XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S/M/ML/L/XL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
Size: XXS/XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML/L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset
Semi-integrated, 1-1/8''
Brake
Shimano MT200 hydraulic disc
Brake rotor
Size: XXS/XS/S/M/ML/L/XL, Shimano RT26, 6-bolt,160mm
Size: L/XL, Shimano RT26, 6-bolt,180mm
Weight
M - 13.20 kg / 29.1 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg)
