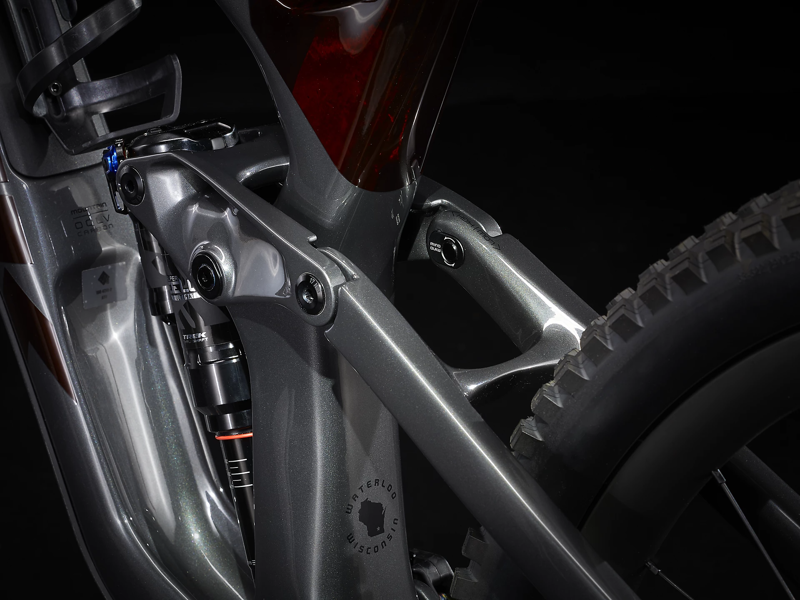

Frame
OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armour, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel
Fork
RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel

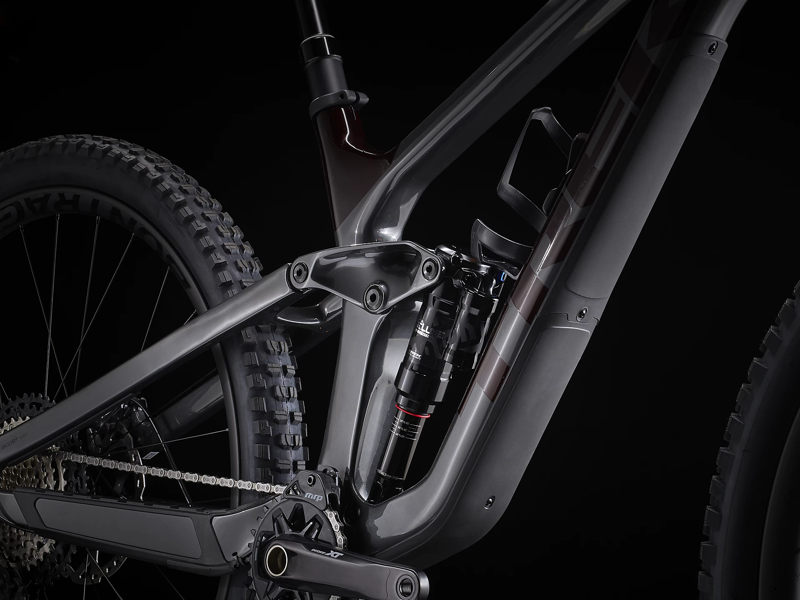

Shock

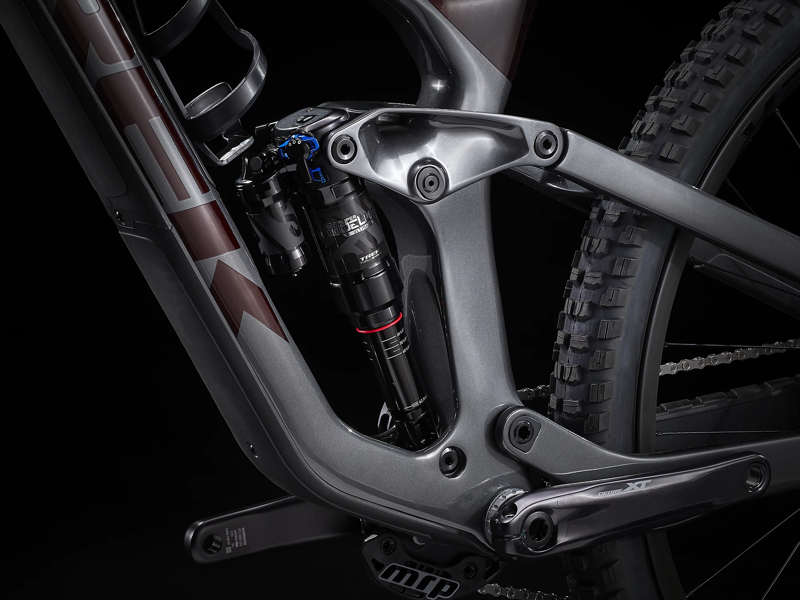

NEW RockShox Super Deluxe Ultimate, DebonAir spring, Thru Shaft 3-position damper, 230x62.5 mm
Max compatible fork travel
180mm (596mm axle-to-crown)
Wheel front
NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Elite 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tyre
Size: S/M/ML/L/XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

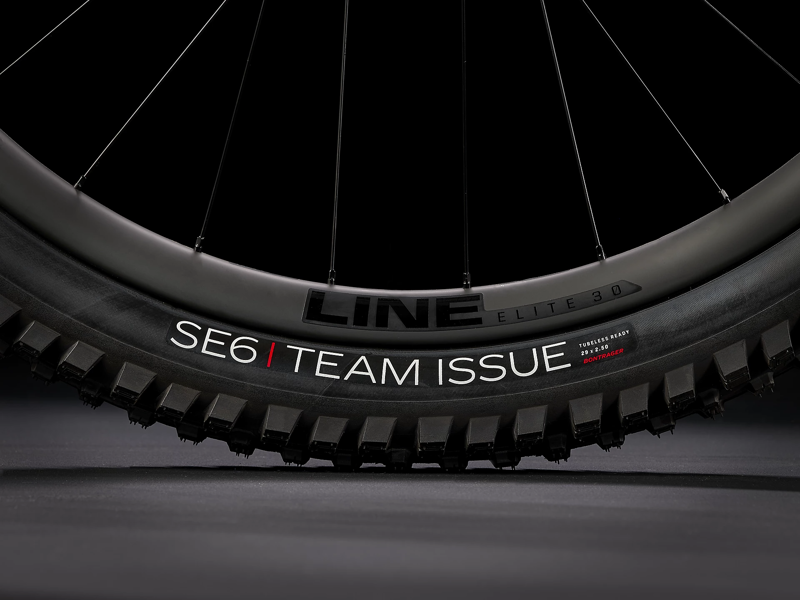

Size: S/M/ML/L/XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50" Fork: See manufacturer
Shifter
Shimano XT M8100, 12-speed

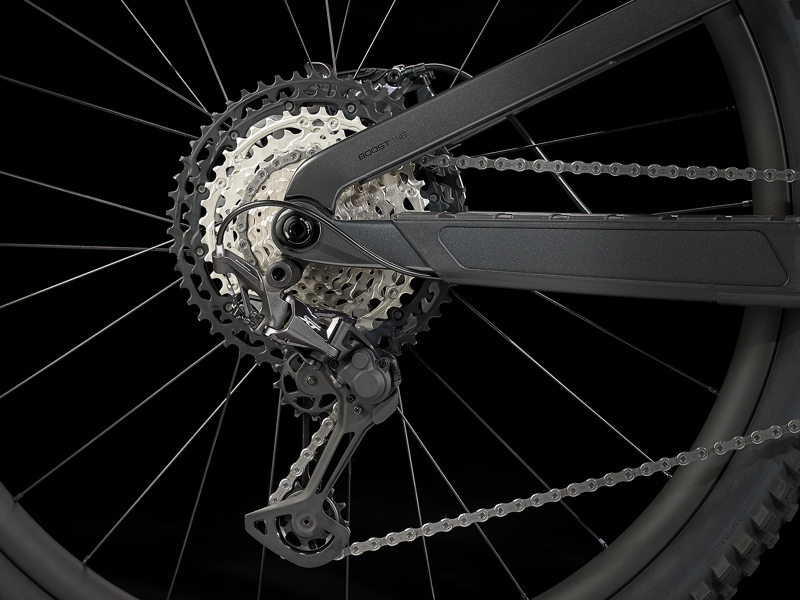

Rear derailleur
Shimano XT M8100, long cage, 51T max cog
Crank

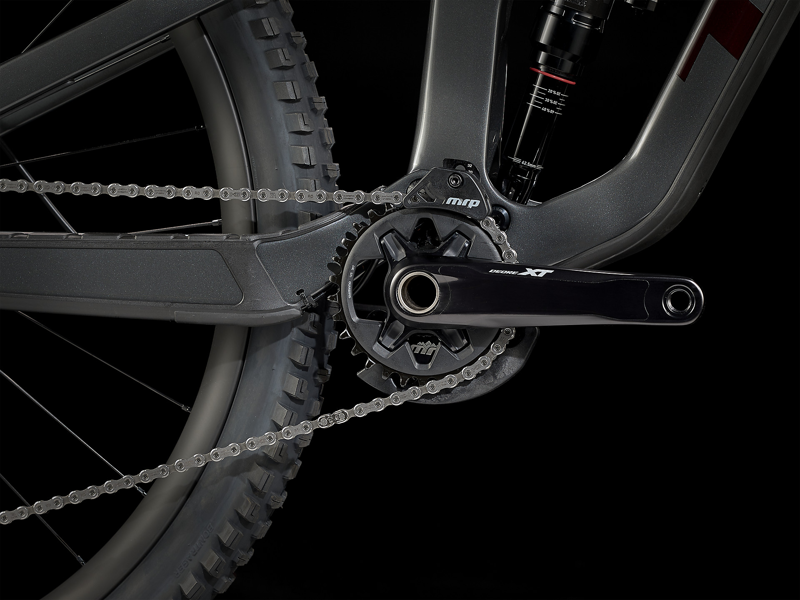

Shimano XT M8120, 30T, Boost (55 mm chain line), 170 mm length
Bottom bracket
Shimano SM-BB52, 73 mm, threaded external bearing
Cassette
Shimano XT M8100, 10-51, 12-speed
Chain
Shimano XT M8100, 12-speed
Max. chainring size
Max: 34T, Min 28T
Saddle

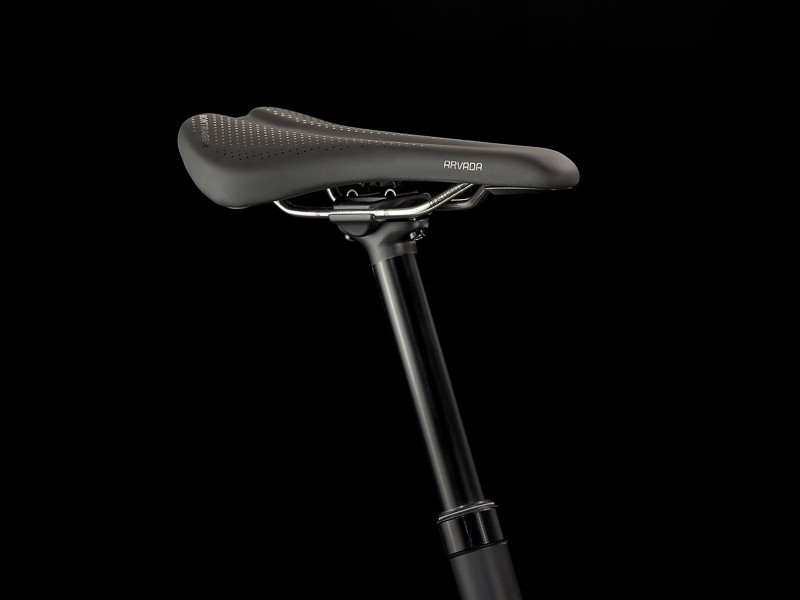

Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: S, Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Size: M/ML, Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Size: L, Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Size: XL, Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width
Grips
Bontrager XR Trail Pro, alloy lock-on

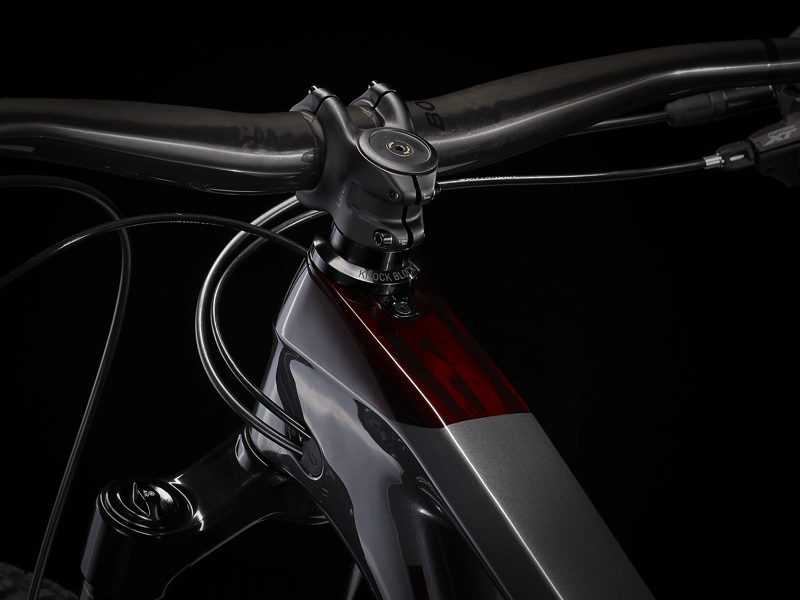

Stem
Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
Head set
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake

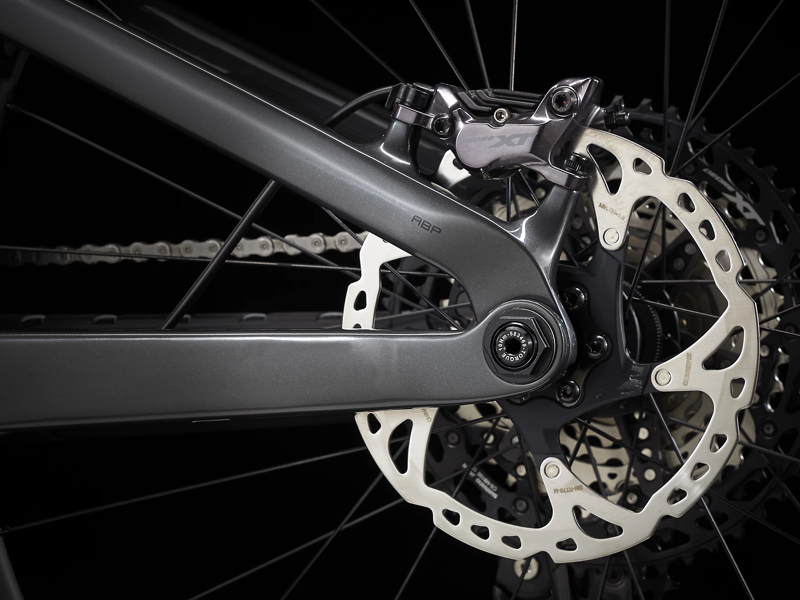

Shimano XT M8120 4-piston hydraulic disc
Brake rotor
Size: S/M/ML/L/XL, Shimano RT76, 6-bolt, 180 mm
Size: S/M/ML/L/XL, Shimano RT76, 6-bolt, 203 mm
Bag

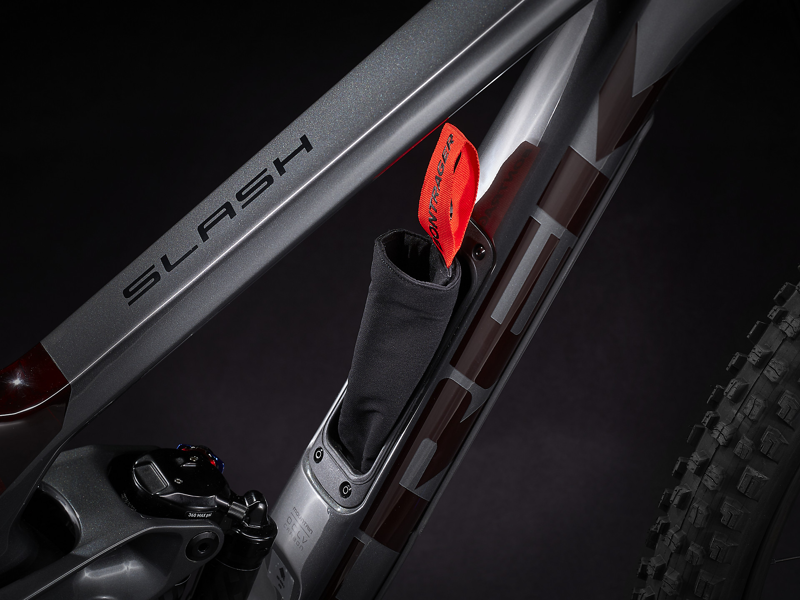

Bontrager BITS Internal Frame Storage Bag
Weight
M - 32.10 lbs / 14.56 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
