Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Fork
Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel

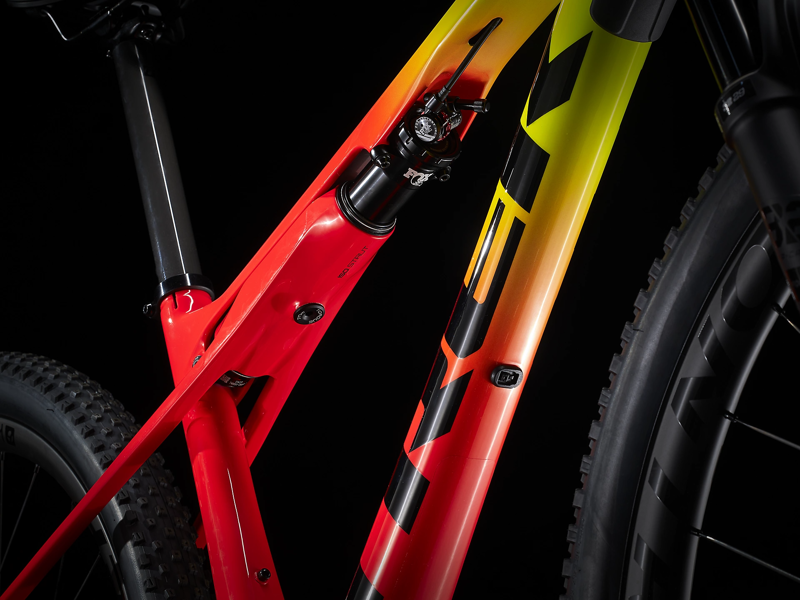

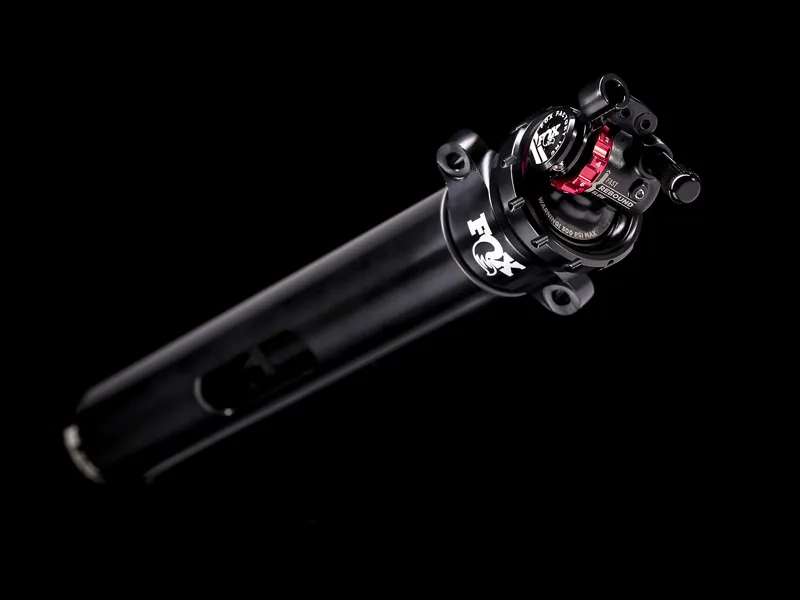

Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm

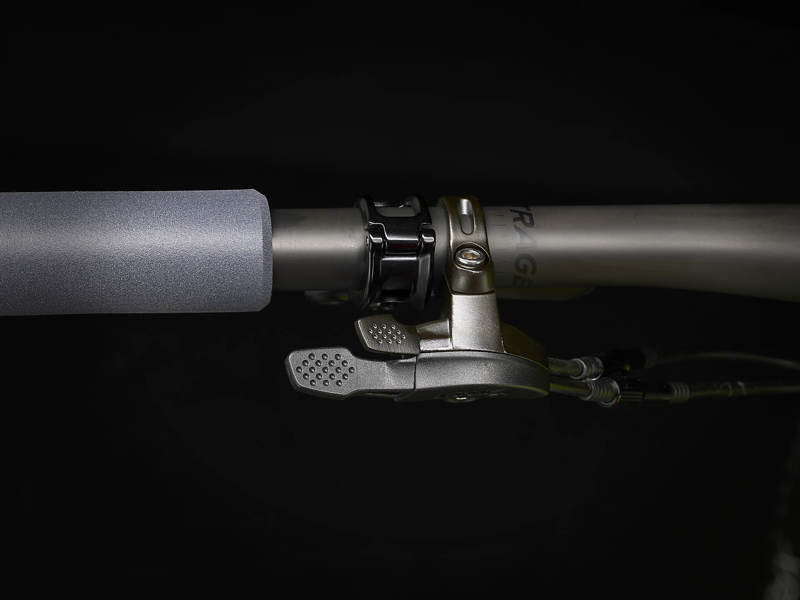

Suspension lever
Fox 2-position dual lockout lever

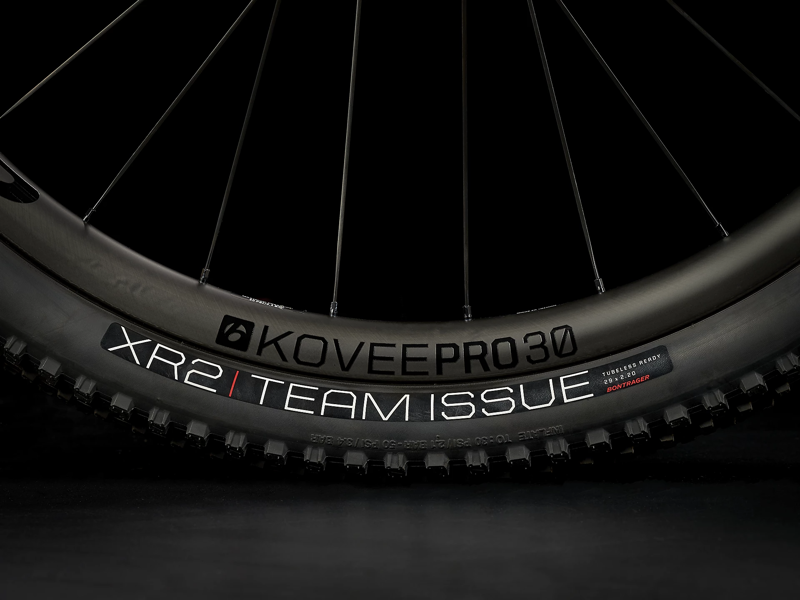

Wheel front
Bontrager Kovee Pro 30 Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle

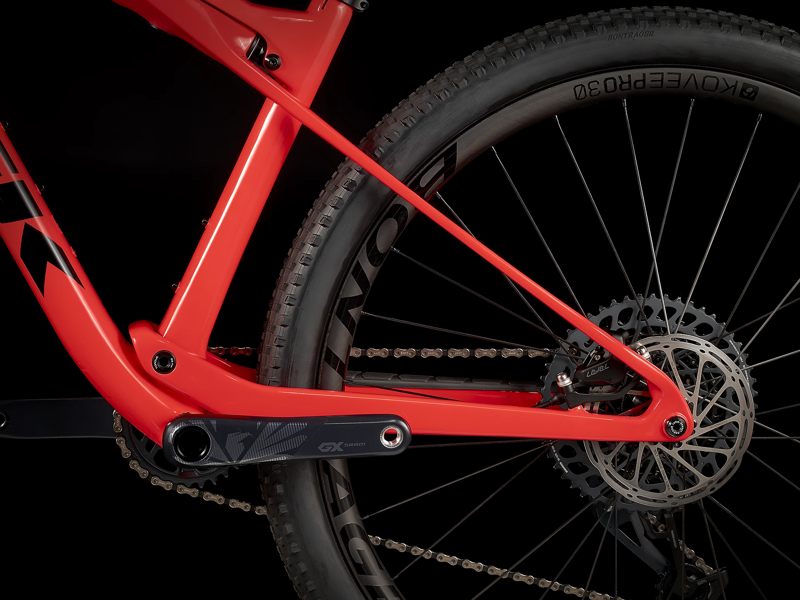

Wheel rear
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, XD Driver, 6-bolt, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20"
Tyre part
Size: S/M/ML/L/XL, Bontrager TLR sealant, 180 ml/6 oz
Size: S/M/ML/L/XL, Bontrager TLR valve, 50 mm
Rim strip
Bontrager TLR
Shifter
SRAM GX Eagle, 12-speed

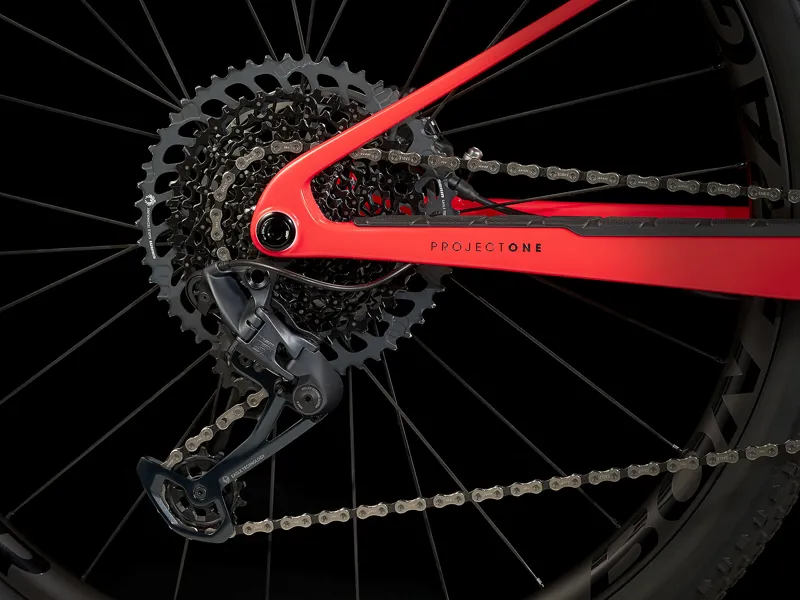

Rear derailleur
SRAM GX Eagle

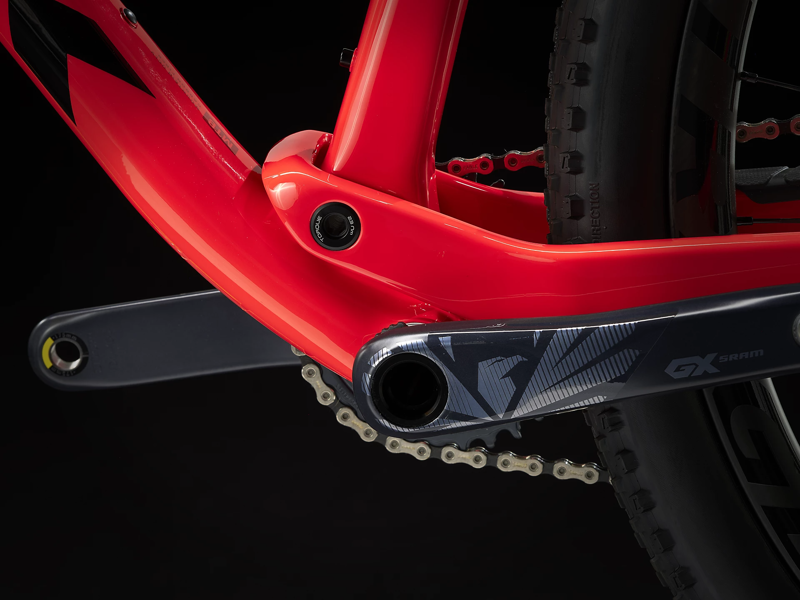

Crank
Size: S, SRAM GX Eagle Carbon, DUB, 32T alloy ring, Boost, 170 mm length
Size: M/ML/L/XL, SRAM GX Eagle Carbon, DUB, 32T alloy ring, Boost (52 mm chain line), 175mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Saddle
Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
Seatpost
Size: S, Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length
Size: M/ML/L/XL, Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length
Integrated Bar Stem
Size: S/M, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70mm length
Size: ML/L, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length
Size: XL, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
Grips
ESI Chunky
Head set
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake
SRAM Level TLM hydraulic disc
Brake rotor
Size: S/M/ML/L/XL, SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size: S/M/ML/L/XL, SRAM CenterLine, 6-bolt, round edge, 180 mm
Weight
M - 23.04 lbs / 10.45 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
