Frame

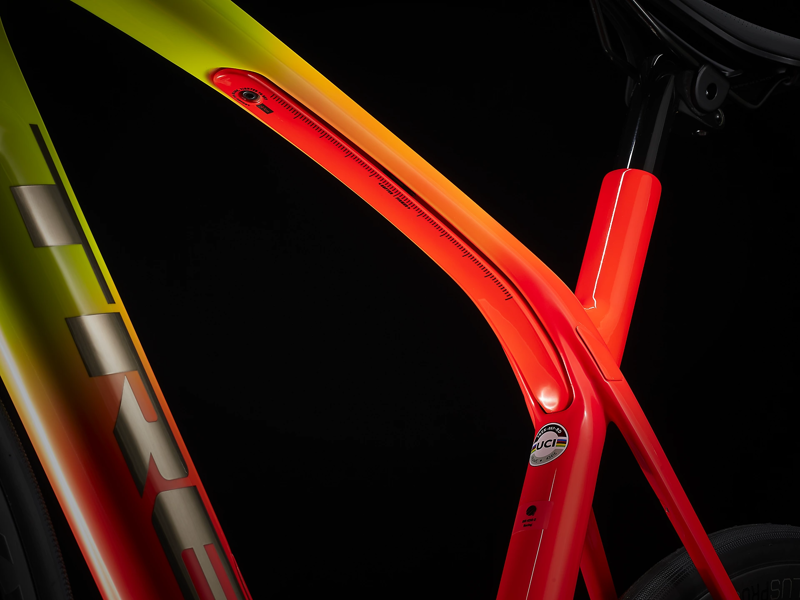

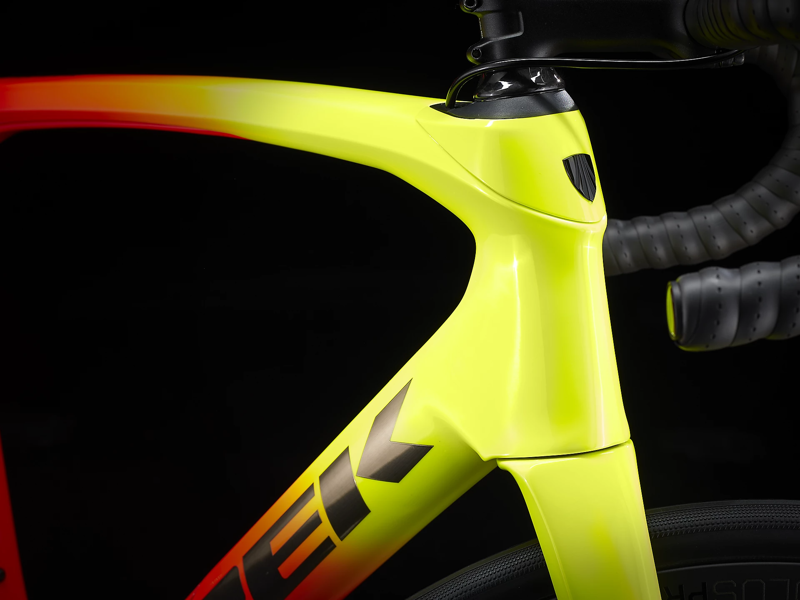

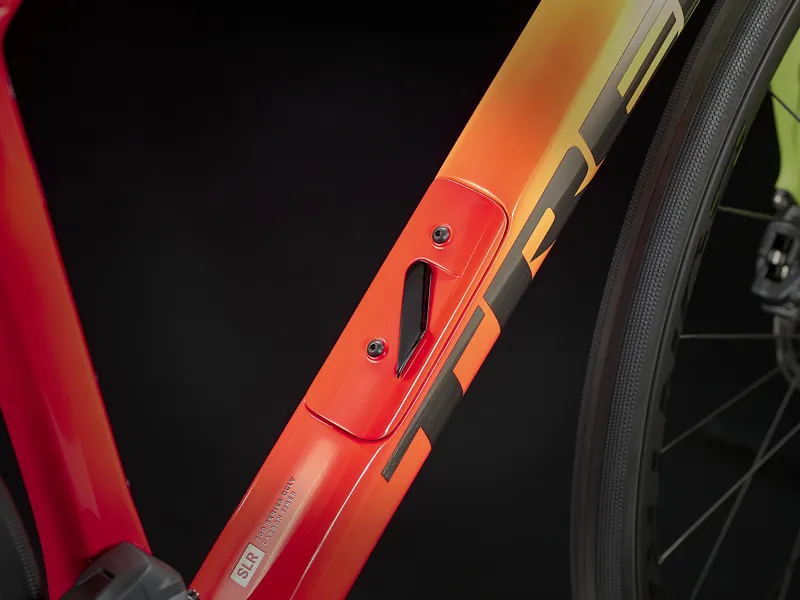

700 Series OCLV Carbon, front IsoSpeed, adjustable rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12 mm thru axle
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, carbon dropouts, 12x100 mm thru axle
Frame fit
Endurance
Wheel front
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 c
Tyre part
Size: 47/50/52/54/56/58/60/62, Bontrager TLR sealant, 180 ml/6 oz
Size: 47/50/52/54/56/58/60/62, Bontrager XXX TLR valve, 55 mm
Rim strip
Bontrager TLR
Max tyre size
38c
Shifter
SRAM Force eTap AXS, 12-speed
Front derailleur
SRAM Force eTap AXS, braze-on
Rear derailleur
SRAM Force eTap AXS, 36T max cog
Crank

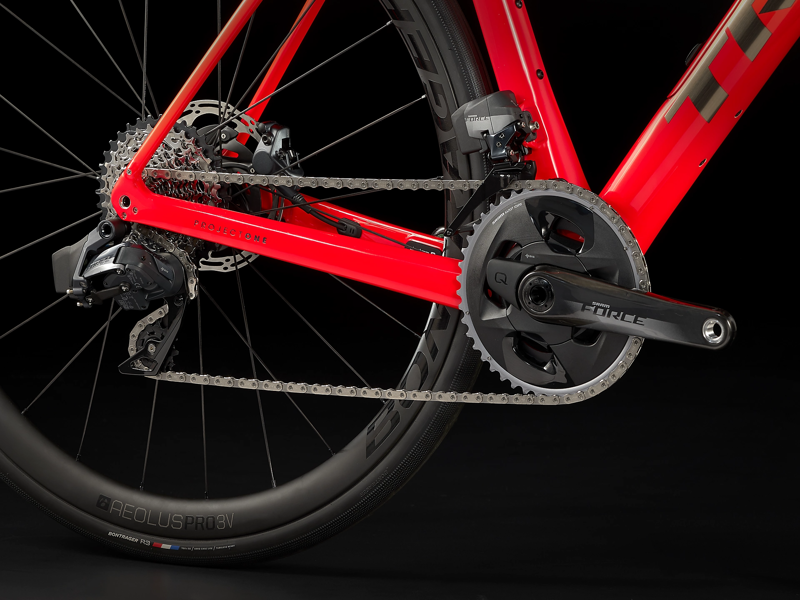

Size: 50/52, SRAM Force AXS Power Meter, 46/33, DUB spindle, 170mm length
Size: 54/56, SRAM Force AXS Power Meter, 46/33, DUB spindle, 172.5mm length
Size: 58/60/62, SRAM Force AXS Power Meter, 46/33, DUB spindle, 175mm lengthSize: 47, SRAM Force AXS Power Meter, 46/33, DUB spindle, 165 mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM Force XG-1270, 10-33, 12-speed
Chain
SRAM Force, 12-speed
Saddle
Size: 47/50/52, Bontrager P3 Verse Elite, stainless steel rails, 155 mm width
Size: 54/56/58/60/62, Bontrager P3 Verse Elite, stainless steel rails, 145 mm width
Seatpost

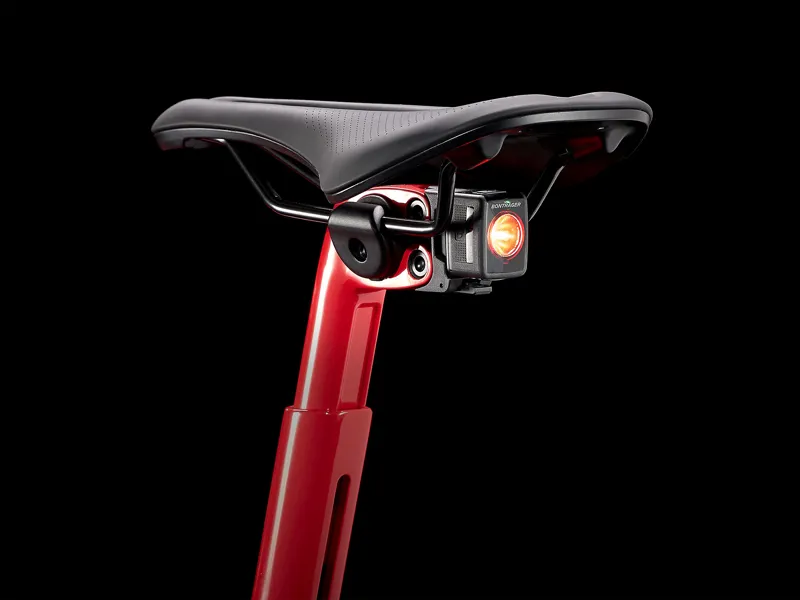

Size: 47/50/52/54/56, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, short length
Size: 58/60/62, Bontrager carbon internal seat mast cap, integrated light mount, 20 mm offset, tall length
Handlebar
Size: 47, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 38 cm width
Size: 47, Bontrager Pro IsoCore VR-SF, 38cm
Size: 50/52, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 40 cm width
Size: 50/52, Bontrager Pro IsoCore VR-SF, 40cm
Size: 54/56, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width
Size: 54/56, Bontrager Pro IsoCore VR-SF, 42cm
Size: 58/60/62, Bontrager Pro IsoCore VR-CF, OCLV Carbon, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width
Size: 58/60/62, Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 47, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: 50, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: 52/54, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: 56/58, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Size: 60/62, Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake
SRAM Force eTap AXS hydraulic disc
Brake rotor
SRAM CenterLine X, CenterLock, round edge, 160 mm
Bag

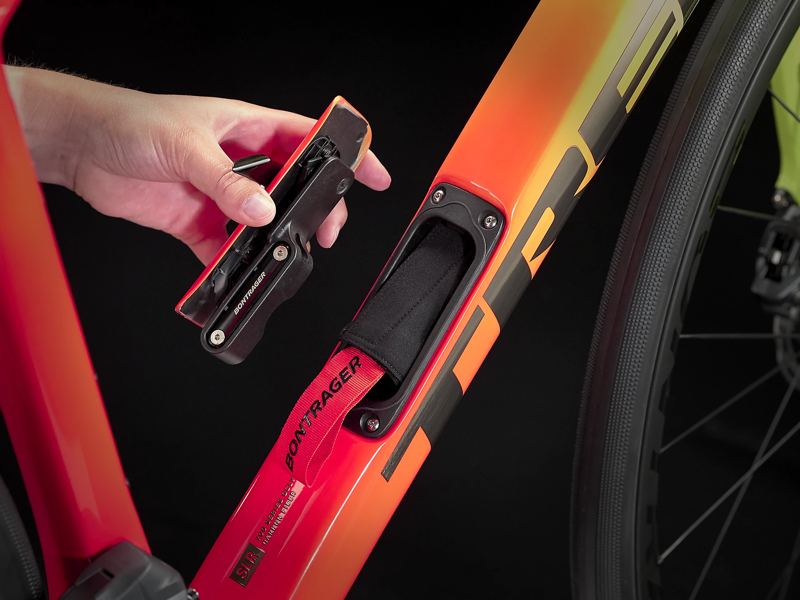

Bontrager BITS Internal Frame Storage Bag
Electronics
SRAM Etap Battery Pack w/ Charger
Weight
56 - 19.51 lbs / 8.85 kg
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
