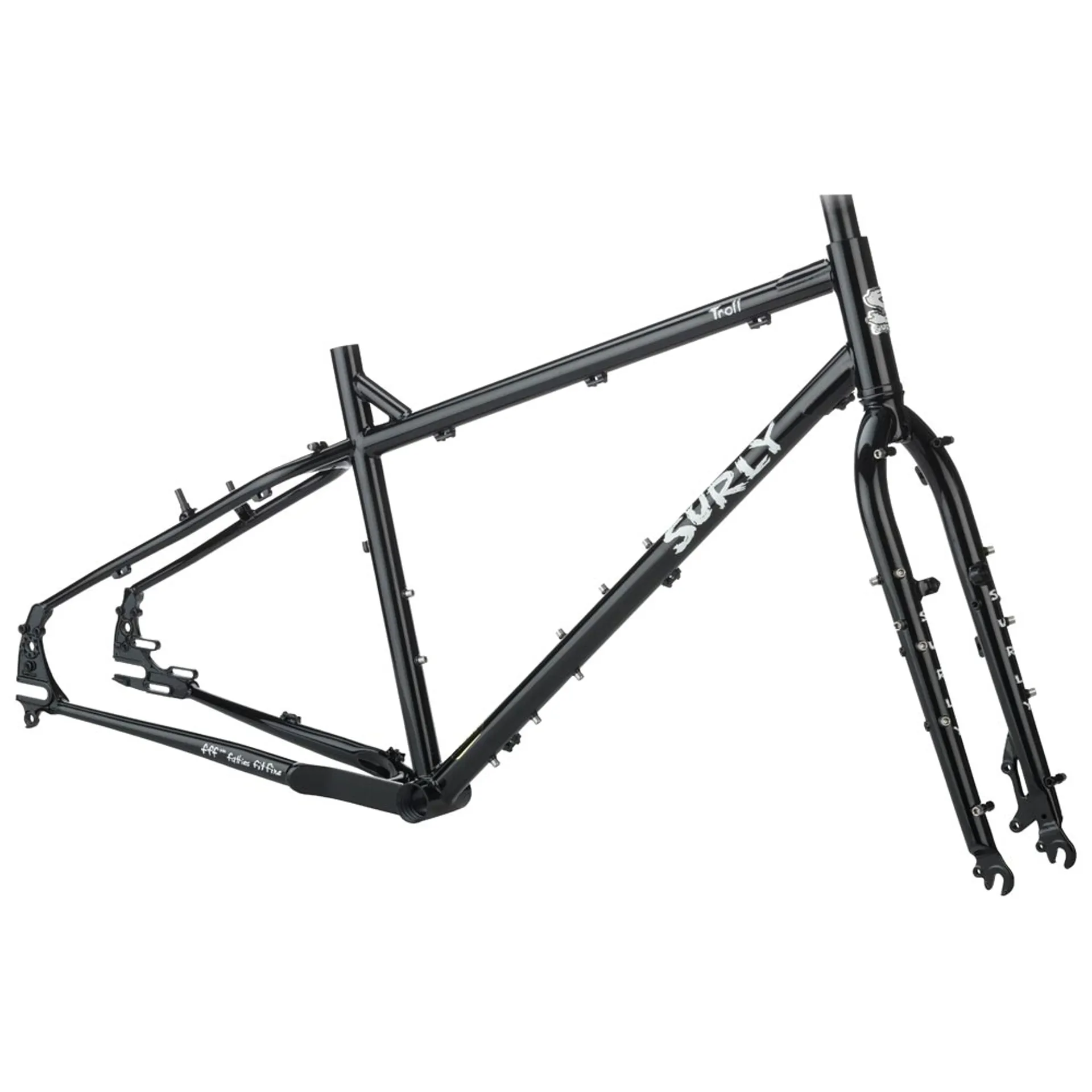

Surly Troll Frameset in Black

Season:2017

Brand:Surly - Bikes/Frames

Code:fmsu-troll-145-blkBLK

Off-road touring can be a zesty enterprise, but it’s not without its perils

Bicycles are simple machines that are extremely efficient, but all simple machines carry along with them the chance of breaking down. This efficiency can get you in trouble if your bike decides to break down far away from the comforts of your parent’s basement. If you’re going to ride your bicycles where no one can see, you better take gear that’s up to the task. Troll is up to the task.

Our Troll was once a simple mountain bike frame with a few extras that made it nice for touring. The Troll has evolved into a frame that has been pushed deeper into the category of off-road touring. Its geometry is no longer suspension corrected, which gives it more room for a larger frame bag. We’ve also adorned this frame with our Gnot-Boost spacing, allowing you to use any mountain bike hub whether it be 135mm QR, 12 x 142mm thru-axle, or 12 x 148mm Boost hub. The chainstay yoke has been redesigned to be fully compatible with 26+ tyres and comes with the always-comfy Jones Loop bar. The dropouts still allow you to run disc brakes, fenders, a Rohloff hub, and racks simultaneously. It also comes with more braze-ons than you thought possible – there are four triple bottle mounts on the fork alone (don’t get excited, you can only run one Anything Cage per fork leg), as well as two more triple bottle mounts on the down tube.

Troll is a bike that has one purpose – and that purpose is to carry you as far away from society as possible. Man has known for eons the call of the indifferent forest. The inexorable march of time, and dumb shit like cell phones, have dulled our senses and made us afraid. Reclaim your animalistic tendencies atop Man’s greatest invention.

  • €920.66
    EUR
  • $1,336.16
    AUD
  • $1,243.39
    CAD
  • $1,557.68
    NZD
  • $895.83
    USD
  • CHF713.75
    CHF
  • kr9,867.21
    SEK
  • kr112,937.22
    ISK
  • kr6,879.35
    DKK
  • kr9,018.24
    NOK
  • ¥141,428.93
    JPY
  • Technical Information
    • Frame Construction
      4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
    • Fork Construction
      4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
    • Rear Dropout Configuration
      Horizontal slotted with optional vertical dumpout
    • Rear Hub Spacing
      Gnot-Boost 145mm
      12 x 142mm or 12 x 148mm (axle not inlcuded)
      10 x 135mm with Surly 10/12 Adapter Washers (included)
    • Front Hub Spacing
      10 x 100mm
    • Rear Brake
      Disc - 51mm I.S. (160mm max rotor) [4]
      Rim - Canti (removable posts)
    • Front Brake
      Disc - 51mm I.S. (203mm max rotor)
      Rim - Canti (removable posts)
    • Head Tube
      Ø34mm
    • Steerer Tube
      Ø28.6mm (1-1/8")
    • Crown Race
      Ø30mm (1-1/8")
    • Stock Headset Upper (S.H.I.S.)
      EC34/28.6
    • Stock Headset Lower (S.H.I.S.)
      EC34/30
    • Seat Collar
      Ø30mm
    • Seatpost
      Ø27.2mm
    • Front Derailleur (Clamp)
      High direct mount top-pull (Ø28.6mm)
      26mm offset adapter (included) for 142 or 135mm rear hub spacing
      29mm offset adapter (not included) for 148mm rear hub spacing
    • Max Chainring (CL)[3]
      1x (Mtn): 42T
      2x (Mtn): 34/44T
      3x (Mtn): 24/36/48T
      1x (Boost): 44T
      2x (Boost): 40/46T
    • Bottom Bracket
      73mm threaded (1.37" x 24TPI)
    • Tire Clearance Frame [1]/[2]
      26 x 3.0" (26 x 2.8" with fenders)
    • Tire Clearance Fork [1]
      26 x 3.0" (26 x 2.8" with fenders)
    • Rigid Fork Spec
      420 x 43mm
    • Max Suspension Fork Length [4]
      N/A
    • Bottle Mounts Frame
      2 Three-Pack (XS)
      1 Standard + 2 Three-Pack (S - XL)
    • Bottle Mounts Fork
      4 Three-Pack
    • Rack Mounts Frame
      Yes (upper and lower threaded)
    • Rack Mounts Fork
      Yes (upper, lower, and mid-blade threaded)
    • Fender Mounts Frame
      Yes
    • Fender Mounts Fork
      Yes
    • Other Features
      Dedicated Rohloff cable routing and mount for OEM 2 axle plate
      Dedicated Surly Trailer mounts

    [1] Different tire and rim combinations will result in different clearances.
    [2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not frame.
    [3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.
    [4] Suspension fork length listed at full extension (not at sag).
    [5] Rear disc brake requires Surly’s proprietary brake mount adapter.
